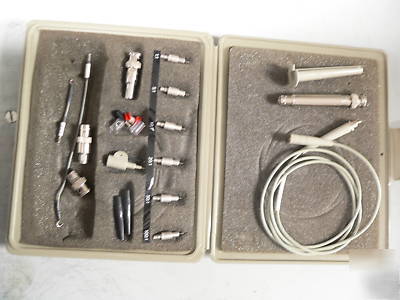

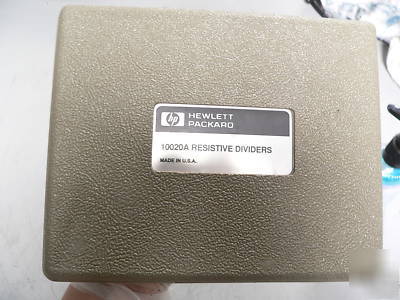

Hp 10020A resistive divider kit
TEKTRONIX 1910 DIGITAL GENERATOR
EXCELLENT CONDITION, WORKS LIKE NEW
FULLY OPERATIONAL - GUARANTEED!
The Agilent HP 10020A is designed for use with 50 O input oscilloscopes, but may be used with other than 50 O systems if a 50 O feedthrough termination such as the Agilent 10100C, is used.
The hp Agilent 10240B Blocking Capacitor is a probing accessessory that provides ac-coupling while maintaining a 50 ohm system. This capacitor is designed for use with the model HP 10020A Resistive Divider Kit, but may be used with any probe that must be terminated in 50 ohms.
Low input RC provides high-fidelity probing of fast-transition signals
The Agilent HP 10218A BNC Adapter allows the Resistive Divider to be connected to a BNC connector
Use of the Agilent HP 10240B Blocking Capacitor provides ac-coupling at the divider output
A spanner tip provides a very short ground lead, which reduces ringing in high-frequency probing
A special probe handle fits over the short vinyl tip for convenient use
Length (overall): Approximately 1.2 m (4 ft)
