Wavetek wtk 2001A sweep generator

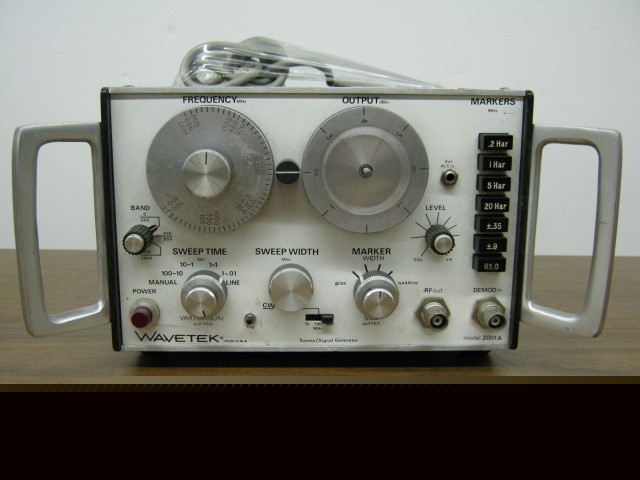

Wavetek WTK 2001A Sweep Generator
1.0 to 1400 MHz in 3 overlapping bands (1 to 500 MHz, 450-950 MHz, and 950 to 1400 MHz)
Rear panel connector permits remote programming of center frequency, sweep width and output level, plus, external amplitude and frequency modulation
Contains markers at 0.2, 1, 5 and 20 MHz harmonics and single frequencies at 62.1, 62.65, 63.0, 63.35 and 63.9 MHz
Sweep and CW operating modes
10 MHz intervals Frequency Dial calibration
50 kHz to 500 MHz sweep width
RF output continuously adjustable from +9 to -81 dBm
Spurious signals at least 26 dBm below the output from 10 to 1400 MHz
Less than 15 kHz residual FM
