> Rf solutions fm sil transmitter module 433MHZ

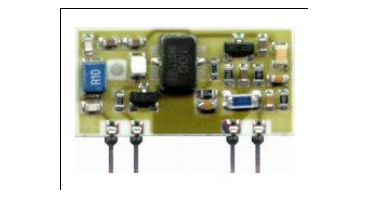

Rf solutions fm sil transmitter module 433MHZ
* Very Stable Operating Frequency
* Low Current Consumption (Typ 8mA)
* Wide Operating Voltage (2.7-14V)
* Compatible With RF Solutions FM Receivers
DescriptionThe R F Solutions Ltd. FM hybrid transmitter module provides a complete RF transmitter which can be used totransmit data at up to 9.6KHz from any standard CMOS/TTL source.The module is very simple to operate and offers low current consumption (typ. 8mA). Data can be supplieddirectly from a microprocessor or encoding device, thus keeping the component count down and ensuring alow hardware cost.The module exhibits extremely stable electronic characteristics due to the use of Thick-Film hybrid technology,which uses no adjustable components and ensures very reliable operation.The modules are compatible with R F solutions Ltd. range of FM receivers to provide a complete solution.
