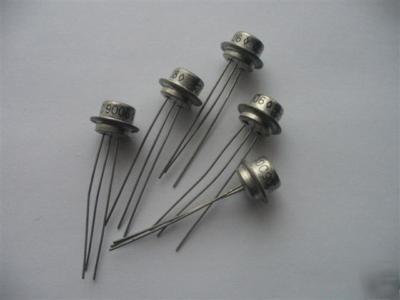

GT308V germanium transistor pnp qty=100
GT308 V Germanium PNP Transistor QTY=100
Static coefficient of the current transfer bipolar transistor in the circuit with common emitter, the handbook provides a minimal (B1) and maximum (B2) value and the current (IK), where this option is determined. - 80-155/10
Cutoff frequency of the transfer current bipolar transistor. - 120MHz
Capacity of the collector junction (Sk) and the collector voltage (Uk), where it is measured - 8pF/5V
Capacity of the emitter junction (Ce) and voltage emitter / base (Ue), in which it is measured - 25pF/1V
Reverse current collector - 5mA
Maximum permissible DC voltage collector-base. - 20V
Maximum permissible DC voltage emitter-base. - 3V
