> Ati qc-150 master plate

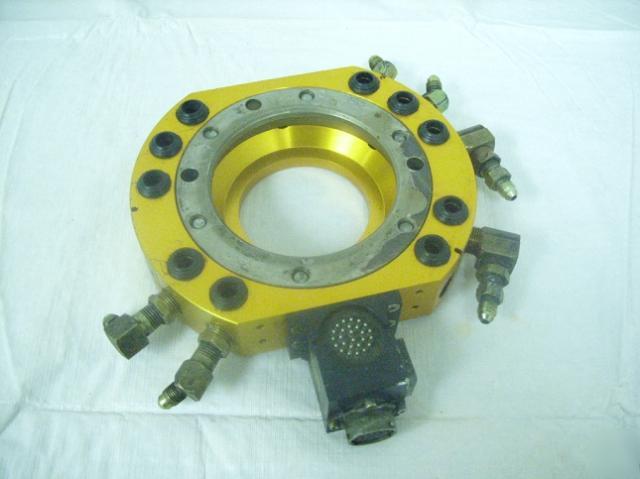

Ati qc-150 master plate
(ONLY MASTER PLATE IS AVAILABLE)
* Extremely strong locking mechanism.
* No-Touch locking technology allows up to 0.12 inches (3.0 mm) plate separation when locking.
* Patented fail-safe locking mechanism design results in low force acting on the piston.
* Large piston diameter and outward ball travel increase moment capacity.
* All locking parts made of Rc58 stainless steel.
* Long-life bushings for pneumatic pass-through.
Locking Force @ 80 psi (5.5 bar):
Static Moment Capacity (X & Y):
Positional Repeatability (X, Y, & Z):
Maximum distance between Master & Tool plate before locking:
Pneumatic Pass-through Ports (qty) Size:
