> Agilent U1604A oscilloscope scopemeter w/warranty
Agilent U1604A oscilloscope scopemeter w/warranty

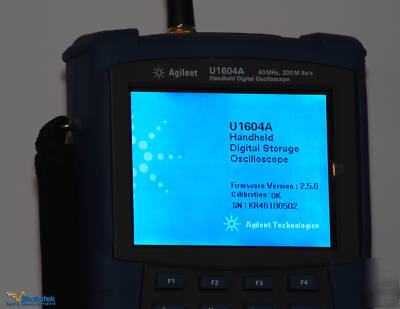

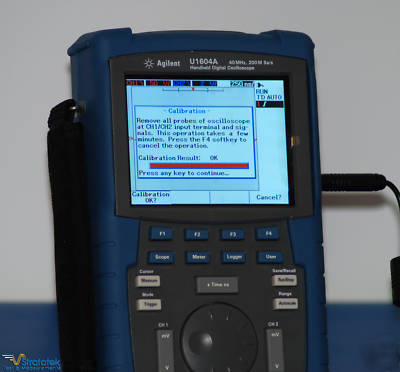

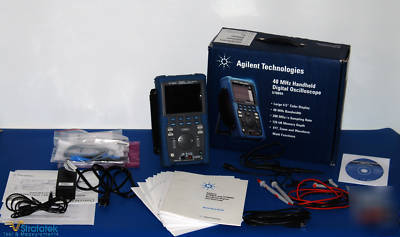

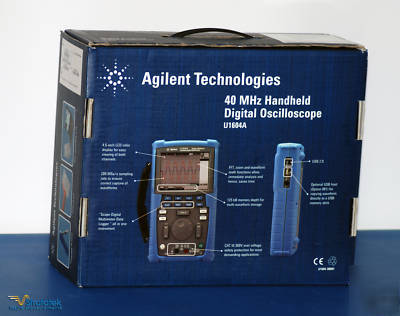

This item is a used Agilent U1604A handheld oscilloscope scopemeter in "near mint" condition with all accessories included in original box. The oscilloscope has been fully tested and values verified. All pictures are of the actual unit.
The U1600A series handheld digital oscilloscope has a 4.5-inch LCD color display that is capable of clearly distinguishing waveforms between two channels. This U1600A series offers a high performance troubleshooting and quality assurance tool for technical professionals in the installation, maintenance, service and automotive industries. The U1600A series consists of two models: U1602A, 20 MHz oscilloscope and U1604A, 40 MHz oscilloscope. Each model has real time sampling rate of up to 200 MSa/s. Users can use the Dual Waveform Math (DWM) and Fast Fourier Transform (FFT) functions (in U1604A) to perform quick waveform analysis in both time and frequency domains. The built-in 6000 resolution count true RMS digital multimeter (DMM) comes with auto-range feature that gives users the flexibility to perform quick and accurate meter measurement functions inclusive of voltage, resistance and auxiliary measurements. In addition to this, the U1600A series also comes standard with data logging functionality that allows users to consolidate a sequence of data points for data recording purposes.
* 3 in 1 Solution: Oscilloscope, True RMS DMM and Real-Time Data Logger
* Large 4.5 inch Color Display
* Up to 40 MHz Scope Bandwidth
* Up to 200 MSa/s Sample Rate
* Advanced triggering modes: edge, pulse, pattern, video
* 22 Automatic scope measurements
* 6000-Count DMM with 11 measurement functions
* Full remote control and data transfer via PC Link software
A scope, true RMS DMM and real-time data logger in one instrument

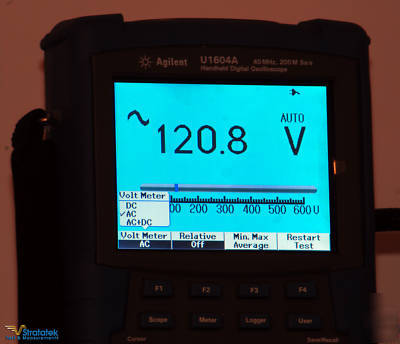

The U1600A series is a robust, high performance and reliable handheld waveform and meter measurement tool for today's challenging industrial environment. This instrument not only provides full featured oscilloscope functions, but a 6000 count true RMS DMM with real-time data logger. The DMM consists of 11 measurement functions including voltmeter (for DC voltage, AC voltage, true RMS AC + DC voltage measurements), ohmmeter (for 2-wire resistance, capacitance, diode and continuity test) and auxiliary meter (for temperature, ampere, humidity and pressure measurements).
Clearly distinguish your waveform

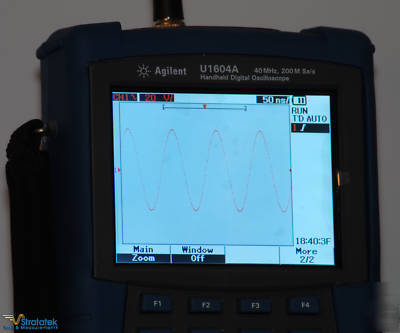

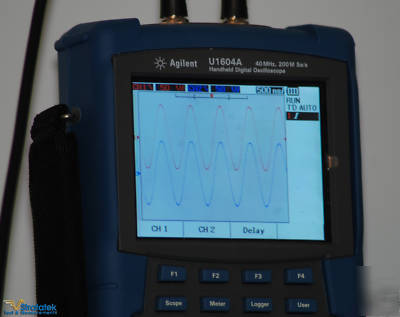

The U1600A series models comes with a color display to allow you to quickly and clearly identify your signal between two channels. The large size LCD display 4.5" with 320 x 240 resolution extends the simplicity and makes it easier for you to see more information.
Capture signal deviations, glitches and dropouts effectively
The U1600A series provides real-time sampling rate of up to 200 MSa/s 8 times the sampling rate of competitive handheld digital oscilloscope in its class. Use U1600A series to capture both instantaneous and repetitive signal anomalies effectively.
High precision zoom-in capability in deep memory
Up to 250 times the memory depth of competitive handheld digital oscilloscope in this class. With 125 kilobytes of memory depth per channel, you can capture long time spans and non-repeating signals while maintaining a maximum sampling rate of 200 MSa/s. Deep memory allows you to quickly zoom in the segment of interest and uncover even the most subtle details of the signal at a given time base setting.
Isolate and analyze the signal you want to see
The U1600A series comes with flexible triggering capabilities that allows you to isolate and capture the condition you want to characterize. The advanced triggering includes edge, pulse width, pattern and video signal triggering that are essential for quick isolation of critical events.
FFT (U1604A only) and Dual Waveform Math functions for waveform analysis
Besides the standard Dual Waveform Math (DWM) function in U1600A series, model U1604A is equipped with an FFT (Fast Fourier Transform) function. This function allows you to view the waveform in frequency domain using four windowing techniques (Rectangular, Hanning, Hamming, Blackman-Harris). Use the DWM function to perform math functions for signal addition and subtraction from multiple channels.
Easy, straightforward connectivity
The U1600A series expands the oscilloscope's capability with the PC Link application software that caters for data gathering, storage and documentation needs from instrument via full speedUSB 2.0. You can control the instrument remotely from PC, retrieve your waveform and print it using a connected printer. This PC Link application software is bundled with the purchase of any U1600A series. Option 001 provides the capability to connect a USB flash drive via the USB host port to store your waveform and configuration setup from the instrument.
Built-in multi-lingual Quick Help menu provides instant assistance
Need assistance while operating the instrument? The built-in multi-lingual Quick Help menu helps to minimize downtime in the event that you need help to set up scope and DMM functions. The supported languages include English, German, Italian, Spanish, Portuguese, French, Korean, Traditional Chinese, Simplified Chinese and Japanese.
* 1 - Scope probe (1:1) CAT III 300 V
* 1 - Scope probe (10:1) CAT III 600 V
* 1 - Ni-MH battery pack 7.2 V, 4500 mA
* 1 - Medium jaw alligator clip
* 1 - Power cord and AC adapter
* 1 - CD-ROM containing User s and Service Guide, Quick Start Guide and PC Link Application software
* 1 - Original Certificate of Calibration (CoC)
