Ac / dc motor timer controller with reversible function

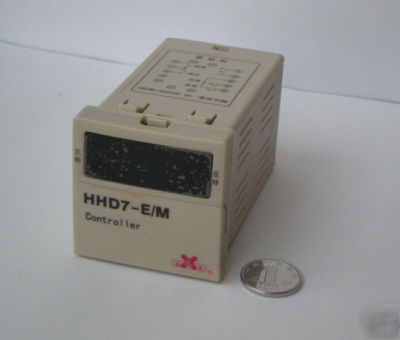

AC or DC Motor Timer Controller With Reversible Function
This is a brand new controller with LED display, reversible function, time delay setting.
Since it comes with relay, so it capable to work with AC motor and DC motor.
2. Time setting range: 0.1s~99h
3. Dimension: 48 x 48 x 90mm (1.9 x 1.9 x 3.5 inch)
4. Relay capacity: AC220V 5A or DC24V 7A
5. Electronic life: 100000 times
6. Mechanical life: 1000000 times
7. Temperature: -5~+40 centigrade
2. Before power on, you should set the stop duration, CW duration, CCW duration. Once it work, would according this proceed: Stop duration - CW duration - Stop duration - CCW duration.
