> Ac brushless pmdc gear motor reversible variable speed
Ac brushless pmdc gear motor reversible variable speed
38 RPM Gear Motor 115V 230V Reversible Variable Speed

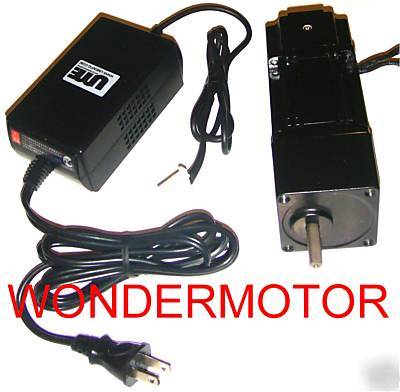

This is a compact, single-phase, 115v ac to 230v ac input, permanent magnet, BRUSHLESS gear motor
with reversible, on/off, speed adjustable controls. Speed range varies depending on the shaft load.
Motor's maximum speed is 38 RPM. Rotation is reversible by a signal wire. This combination will be
described in two parts: brushless dc gear motor and power adapter.
Brushless 12VDC Gear Motor: 8.4 N-m (6.2 ft-lb) torque at 35 RPM. Permanent magnet rotor. 60mm x
60mm square front. 4 M5 threaded holes located at front for face mounting. Motor length is 6.5 inch
(165mm) long and its controller is integrated as part of the motor. Shaft is 8mm in diameter with a flat
and is 1 inch (25.4mm) long. The control line, which contains speed adjustment (with a pot soldered
already), reversing signal wire, on/off signal wire, and signal ground wire, is 20 inch (508mm) long.
Connector line that is to connect to the power adapter is 20 inch (508mm) long. Motor control is very
simple. To turn the motor on, simply connect the on/off (blue) wire to signal ground (black) wire. A
typical practice is to introduce a switch between the on/off wire and the ground wire, but one may decide
to solder the on/off (blue) wire to the ground (black) wire if on/off feature is not necessary. To reverse the
rotation of the motor, simply connect the reverse (white) wire to the same ground wire and the motor will
reverse its rotation. PLEASE BE SURE THAT THE MOTOR IS AT FULL STOP BEFORE REVERSING.
To vary the speed, simply turn the potentiometer.
Power Adapter: The power cord is 5 ft(152 cm) long and has a standard plug ready to plug into a
standard appliance outlet. The adapter is able to universally accept 115v ac or 230v ac. Connector line
that is to connect to the motor is 3 ft (91 cm) long. Adapter's dimensions are 2.5 in(64mm) width by
4.75in(121mm) length by 1.75in(44mm) depth.
Manufacturer: Wondermotor (wondermotor.com); UME (umemfg.com)
