> New miller 907099011 dynasty 200DX tig welder
New miller 907099011 dynasty 200DX tig welder

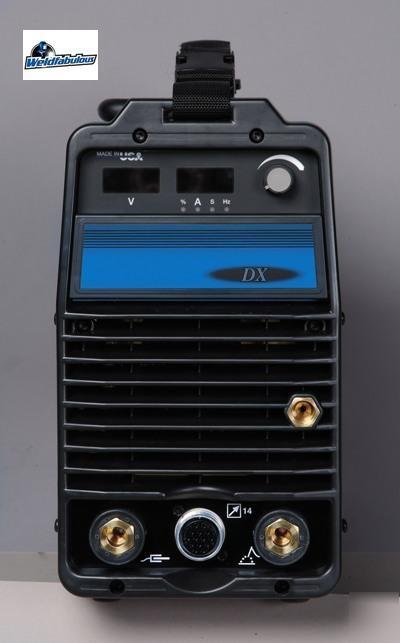

Miller 907099011 Dynasty 200Dx Tig Welder New
Additional accessories and extra parts for sale in Configurator at bottom of listing. Great prices!!
Dyansty 200 DX AC TIG Features
NEW! Blue Lightning - High Frequency Arc Starter for non-contact arc initiation. More consistent arc starts compared to traditional HF arc starters. Greater reliability and no maintenace on solid state components. Preset parameters for tungsten sizes from .020 - 1/8 inch provide optimized starting for applications from thick to micro thin material. For unique applications, custom settings are programmable.
Extended AC Balance (30-99%) controls the amount of oxide cleaning (amperage time in EN) which is essential for high quality welds on aluminum.
AC frequency (20-250 hz)controls the width of the arc cone and the force of the arc.
Soft Squarewave for a soft buttery arc with maximum puddle control and good wetting action.
Triangular wave reduces the heat input and is good on thin aluminum. Fast travel speeds.
Exceptionally smooth and precise arc for welding exotic materials.
Tailored arc control (DIG) allows the arc characteristics to be changed for specific appications and electrodes. Smooth running 7018 or stiffer, more penetrating 6010.
Hot Start adaptive control provides positive arc starts without sticking.
AC frequency control adds additional stability when Stick welding in AC for smoother welds.
Low OCV Stick is a simple design that reduces open-circuit voltage to 5-10 VDC when power source is not in use. This built-in circuit design eliminates the need for add-on voltage reducers.
Built-in pulser reduces heat input; adds arc stability (DX model only).
Fan-On-Demand cooling system only operates when needed.
Auto-Line provides state-of-the-art flexibility by automatically connecting to 120-460 VAC, single- or three- phase power without removing the covers to relink the power source. No longer is there a concern if you have the correct machine for the shop or the job site.
Portable in the shop or at the job site - at 45 lb the unit is easily moved from location to location.
Squarewave Technology is the AC output of a power source that has the ability to rapidly switch between the positive and negative half cycles of alternating current.
Internal components are protected from damage by thermal overload protection hich automatically shuts down the unit if duty cycle is exceeded or air flow and cooling are restricted. Process
* Pulsed TIG (GTAW-P) with DX model only
* 200 A at 18 V, 20% Duty Cycle
* 150 A at 16 V, 60% Duty Cycle
* 140 A at 15.6 V, 40% Duty Cycle
* 100 A at 14 V, 100% Duty Cycle
* 200 A at 28 V, 20% Duty Cycle
* 130 A at 25.2 V, 60% Duty Cycle
* 100 A at 24 V, 60% Duty Cycle
* 90 A at 23.6 V, 100% Duty Cycle
* 1-200 Amps (1-150 on 120 VAC)
Industrial to Heavy Industrial Apps
* Dynasty 200 DX power source
* (2) Dinse 50 mm connectors
* Air-Cooled TIG torch adapter
