Stanford research hv ps 350-01

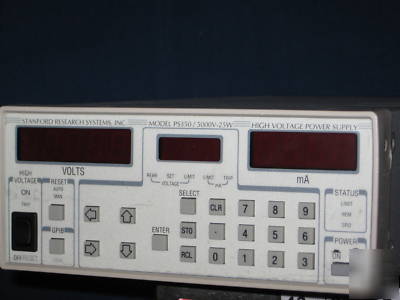

STANFORD RESEARCH PS350-01 POWER SUPPLY
THIS IS A PROGAMMABLE PRECISION HIGH VOLTAGE POWER SUPPLY FOR USE IN THE LABORATORY OR TEST APPLICATIONS. UP TO 5000 VOLTS, THIS UNIT FEATURES REVERSIBLE POLARITY, EXCELLENT REGULATION AND LOW OUTPUT VOLTAGE RIPPLE. THE DIGITAL DISPLAYS PROVIDE ACCURATE READINGS OF VOLTAGE AND CURRENT. THE DIGITAL ENTRY OF THE CURRENT AND VOLTAGE PROVIDES ACCURATE RESETTABILITY. OUTPUT VOLTAGE CAN BE SET FROM EITHER THE FRONT PANEL, THE REMOTE ANALOG VOLTAGE, OR OVER THE GPIB INTERFACE. VOLTAGE AND CURRENT SIGNALS ARE ALSO AVAILABLE FOR REMOTE MONITORING.
VOLTAGE SET ACCURACY 0.01% +0.05% OF FULL SCALE
VOLTAGE DISPLAY ACCURACY V SET ACCCURACY +/-1 VOLT, TYP (2+/-2 VOLT, MAX)
VOLTAGE RESOLUTION 1 VOLT (SET AND DISPLAY)
VOLTAGE LIMIT RANGE 0 TO 100% OF FULL SCALE
VOLTAGE REGULATION(*) LINE: 0.0001% FOR +/- 10% LINE VOLTAGE CHANGE
LOAD: 0.005% FOR 100% LOAD CHANGE, TYP
OUTPUT RIPPLE < 0.0015% OF FULL SCALE, VRMS, TYP
< 0.002% OF FULL SCALE, VRMS, MAX
CURRENT LIMIT AND TRIP RANGE 0 TO 105% OF FULL SCALE
CURRENT SET ACCURACY 0.01% + 0.05% OF FULL SCALE
CURRENT DISPLAY ACCURACY I SET ACCURACY +/- uA, TYP (+/- uA, MAX)
STABILITY 0.01% PER HOUR, < 0.03% PER 8 HOURS
TEMPERATURE DRIFT 50 PPM / C, 0 TO 50 C, TYP
PROTECTION ARC AND SHORT CIRCUIT PROTECTED; PROGAMMABLE VOLTAGE
AND CURRENT LIMITS AND CURRENT TRIP
NOTE: I MAKE NO WARRANTY(EXCEPT AS STATED ABOVE), EXPRESS OR IMPLIED AND I EXPRESSIVELY EXCLUDE AND DISCLAIM ANY WARRANTY OF MERCHANTABILITY, ANY NON-INACCURACIES, INCLUDING BUT NOT LIMITED TO ANY PICTURE, DESCRIPTIONS OR OTHER INFORMATION IN RELATION TO THIS ITEM CONTAINED ON THIS WEBSITE, TO INCLUDE OTHER COMMUNICATIONS, ELECTRONIC OR OTHERWISE!
THIS ITEM MAY END AT ANYTIME BY THE SELLER'S DISCRETION!
