> Baldor BM3569 1/3HP 1725 208-230/460 3PH brake motor

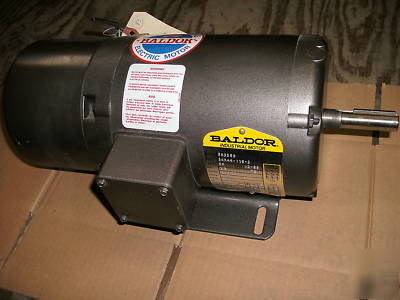

Baldor BM3569 1/3HP 1725 208-230/460 3PH brake motor
Baldor BM3569 1/3HP 1725 208-230/460 3PH BRAKE MOTOR
Catalog Number: BM3569 Specification Number: 34K44-116-B Horsepower: .33 Voltage: 208-230/460 Hertz: 60 Phase: 3 Full Load Amps: 1.5-1.4/.7 Usable at 208 Volts: 1.5 RPM: 1725 Frame Size: 56 Service Factor: 1.00 Rating: 40C AMB-CONT Locked Rotor Code: K NEMA Design Code: B Insulation Class: B Full Load Efficiency: 70 Power Factor: 64 Enclosure: TENV Baldor Type: 3416M DE Bearing: 6203 ODE Bearing: 6203 Electrical Specification Number: 34WG0116 Mechanical Specification Number: 34K044 Base: RG Mounting: F1
