Mid-west instrument 830 backflow test kit vacuum check

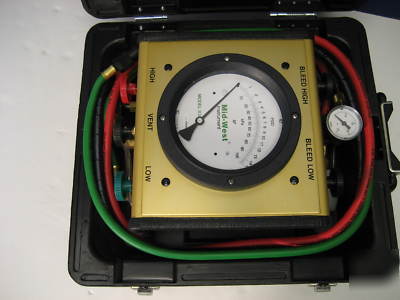

MID-WEST INSTRUMENT 830 BACKFLOW TEST KIT VACUUM CHECK
The 830 is in the list of Acceptable gages from
Both FCCC & HR-USC and CA-NV AWWA
Functions and Applications:
Backflow Test Kits provide the capability for testing all brands of
Reduced Pressure Principle
, Pressure Vacuum Breaker,
Spill Resistant Vacuum Breaker
backflow prevention assemblies.
Industry Standard for over 30 years
Specially Designed for Testing Backflow Prevention Assemblies

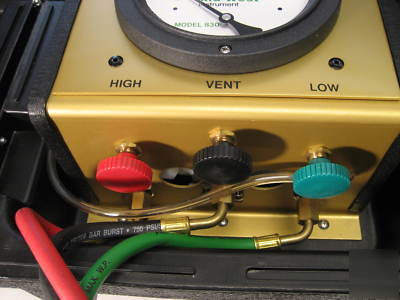

Soft-Seated Brass Needle Valves (with replaceable valve seats)
Test kit is protected with 90 micron filters to minimize plugging with scale, sand, etc.
Filter elements can be cleaned or replaced

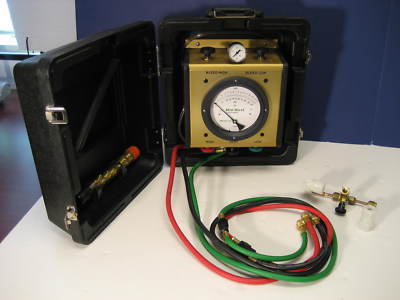

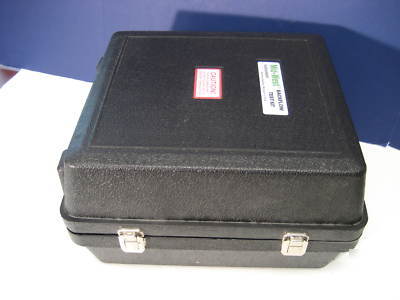

Durable Molded Carrying Case with Removable Lid

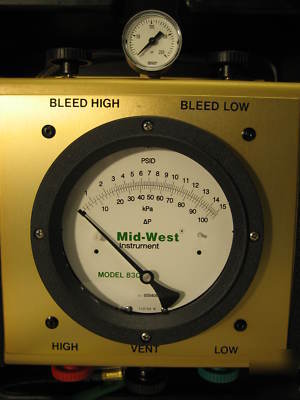

Gauge Type: Diaphragm Differential Pressure

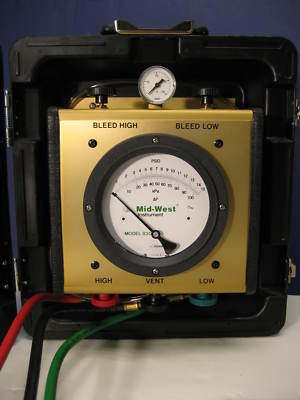

Dial Size & Range: (4 ) 0-15 PSID / 0-100 KPA
Differential Pressure Accuracy: .2 P.S.I.D. (Descending)
Working Pressure: 200 PSIG
Body Material: Glass Reinforced Engineering Thermoplastic.
Wetted Internals: EP Elastomers, Brass and 316 S.S. Metal Parts
Line Pressure Gauge: 1 0-200 PSIG
Tubing & Fittings: Brass & Nylon
Hoses & End Fittings: Buna-N jacket and liner. Schrader brass coupler -
Hose Length: Three (3) each / 5 long (color-coded).
Bleed Tube, One each / 4 long clear bleed tube.

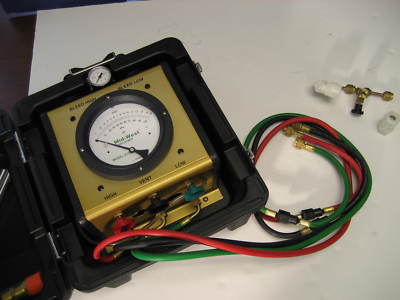

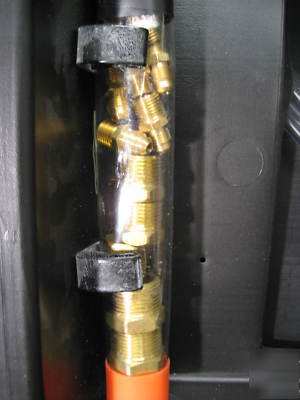

Adaptor Fittings: as pictured.
Weight, case & gauge combined: 14lbs/6.4 kilos
Temperature Limitations: Maximum 150 F/65 C.
FREEZING TEMPERATURES MUST BE AVOIDED
Capable of performing all known test procedures including those recom
.99 cent NO RESERVE!!! .99 cent NO RESERVE!!! .99 cent NO RESERVE!!!

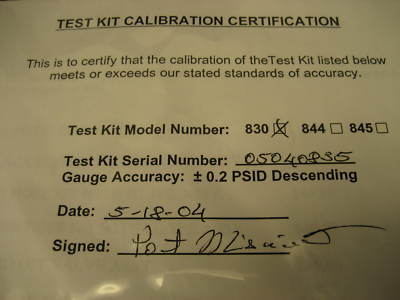

* This item is PRE-OWNED/TESTED TO THE BEST OF OUR ABILITY, SEEMS TO BE IN GOOD NEARLY NEW BUT PRE-OWNED CONDITION - CALIBRATION IS SEVERAL YEARS OLD HOWEVER, PLEASE NOTE THAT.
