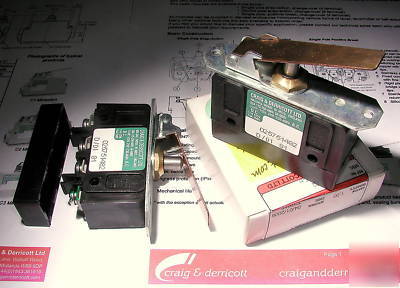

Limit switch 20A changeover momentary stomp [rrp~£18]


High quality, and robust UK manufactured switch. Craig & Derricot [Walsall, Midlands] General Description: Craig & Derricott s limit switches are sold under the trade name of Miniswitches . The name is used to suggest that these devices are a scale up from microswitches, and this is indeed the case with all items being of industrial quality and very robust in construction.
Craig and Derricot List Price: 17.85 each [inc. VAT]
Rating: 20Amp [Ith thermal rating] [see website link below for full ratings]
Output: SPCO [it's actually four terminals: 2 of N/O and 2 of N/C so a single wire link can be fitted to make that SPCO. Single pole changeover]
Switching type: DA [snap action single pole]
Model type: DA1 This model incorporates an actuating lever [phosphor bronze]. Length [to pivot]: 57mm
Mounting: Can be through panel mounted [this would require a rectangular cut-out] or mounted on a side bracket using the two fixing holes which pass completely through the switch..
Dimensions: Total Width: 60.5mm. Fixing holes spacing 38.1mm [see pdf data sheet for full dimensions.
For a full data sheet please see: http://pdf.directindustry.com/pdf/craig-derricott/classic-limit-switch-range/Show/14180-42702-_2.html
