> Wika bimetal thermometer 3"dial 4"stem 50-550F/c dampen

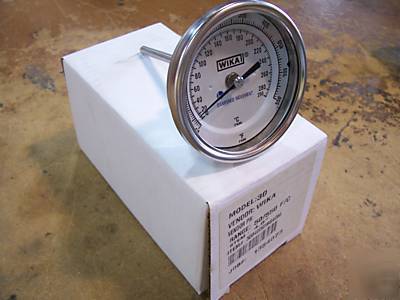

Wika bimetal thermometer 3"dial 4"stem 50-550F/c dampen
Part# 30040D016G4DM. DM is the Dampened Movement option.
WIKA s line of process grade Bi-Metal Thermometers feature an external recalibration screw. Additionally, WIKA offers the world s first Dampened Movement Thermometer which minimizes pointer oscillation in high vibration applications.
Suitable for fluid medium which does not corrode 304
Stainless steel case and wetted parts
Back connection with external reset
Industrial type design for fluid medium which does not
+ 1.0% full scale value (ASME B40.3)
50 oF to 550 oF (and equivalent Celsius)
Short time: 110% of full scale value
Temporary over or under range tolerance of 50% of scale up
to 500 oF. (260 C). For ranges above 500 F, maximum over
range is 800 F; continous. 1000 F intermittent.
Center back mount (CBM), 1/2" NPT
Hermetically sealed per ASME B40.3 standard
External reset slotted hex head on back of case
White aluminum, dished, with black markings
Inert gel to minimize pointer oscillation
Dual: Fahrenheit (outer) and Celsius (inner)
Silicone (-100 oF and over 550 oF)
7 oz. (3" dial); Add 1 oz for every 2" of stem length
Viscous inert gel to enhance pointer operation
