> New pepperl+fuchs rapid exchange purging system -
New pepperl+fuchs rapid exchange purging system -
CLICK ON THE LINK ABOVE TO CHECK OUT MORE ITEMS AT OUR STORE!!!!

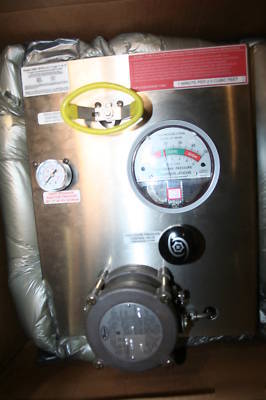

PEPPERL+FUCHS MODEL 1003 RAPID EXCHANGE PURGING SYSTEM
Catalog Number: 1003-WPSA-CI-YZ-LH
The model 1003 is a Rapid Exchange purging system that operates on a supply of compressed instrument air or inert gas. It regulates and monitors pressure within sealed (protected) enclosure(s), in order to remove and prevent flammable gas or vapor accumulations. The system accomplishes four air exchanges and maintains a "safe" (0.25 in) pressure. A Pepperl-Fuchs Model EPV-3 Enclosure Protection Vent is required for proper operation. This process reduces the hazardous (classified) area rating within the enclosure(s). In accordance with the NEC - NFPA 70, Article 500, NFPA 496 and ISA 12.4.
Order Number: 1003-WPSA-CI-YZ-LH
Enclosure Volume: 75 cubic feet (MAX)
Temp. Range: -20 to 120 degrees F
Supply Pressure Rating: 80 to 120 psi
Capacity & Filtration: 3.8 oz @ 40 Micron
Supply Requirements: clean air or inert gas
Safe Pressure Flow Rate: 0.1 to 3.5 SCFH
Exchange Flow Rate: 10 SCFM / 600 SCFM
Exchange Time: 1 min / 2.5 cubic feet
Enclosure Supply Fitting: 3/8" Tube Fitting
Enclosure Reference Fitting: 1/4" Tube Fitting
Switch Setting (Decr.): 0.15" +/- 0.02"
Switch Conduit Port Size: 1/2" FPT
Switch Contact Rating: 120 VAC, 10 A, 28 to 125 VDC
