Traction motor- 24V, 9HP

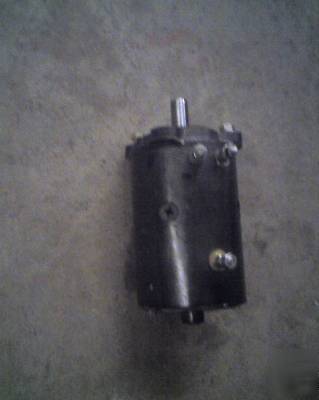

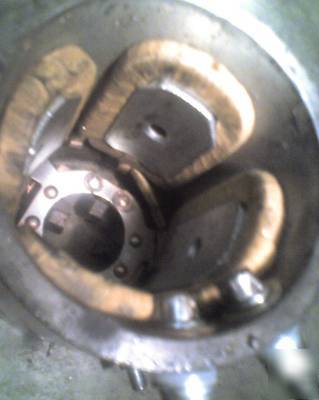

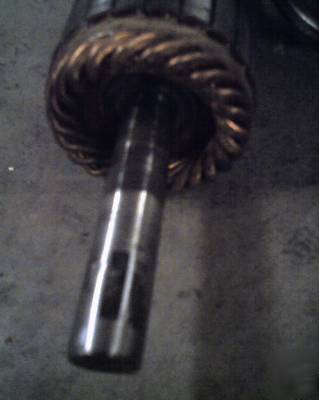

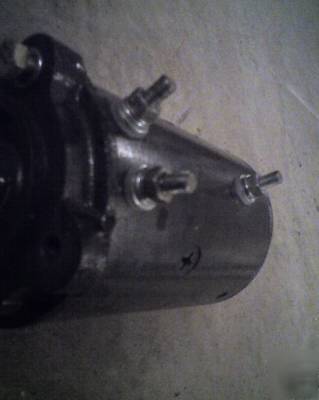

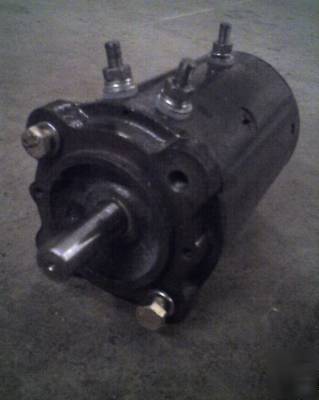

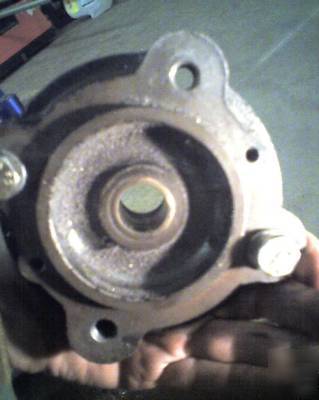

Anyways, this is a three post motor- meaning the polarity of the field magnets can be reversed, thus reversing the direction of the motor. Diagonally, the bolt holes measure 4" from center to center. The outer circular flange is 3" in diameter. The shaft is 1.75" long, by .75" diameter.
Add your own wire to connect the posts up and connect power to the positive terminal and ground the case, and she'll spin up for you.

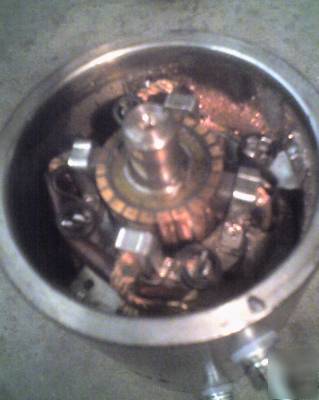

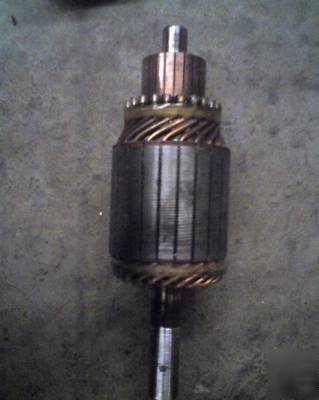

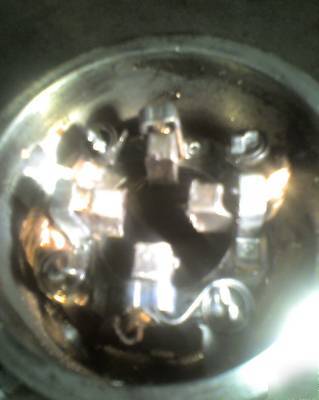

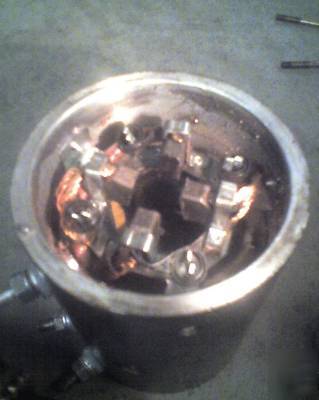

The motor has brass bushings and carbon brushes. The components are intended to last a long time and brushes of this style are easily found in the hardware store to replace these if/when they wear out.
