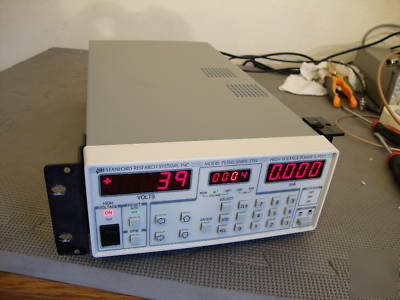

Srs stanford research PS350 high voltage power supply
The first one just sold today: 4/22 . this is number 2 out of 6
this is a stanford research systems ps350 fully tested perfect and guaranteed for 30 days.
OPTION 1 INCLUDED ON THIS UNIT a 500$ upgrade.
this is a High Voltage Power Supply . programmable
* +20 kV, -20 kV, +10 kV, -10 kV, 5 kV, 2.5 kV, 1.25 kV supplies
* Programmable limits and trips
* RS-232 interface (10 kV & 20 kV models
The PS300 Series High Voltage Power Supplies rugged, compact, reliable instruments for just about any high voltage application.
With up to 20 kV output capability, a GPIB computer interface, and 0.001 % voltage regulation, these high voltage power supplies have become the industry standard.
There are several models to choose from, with outputs ranging from 1.25 kV to 20 kV.
this unit is 110-240 v compatible.
Comes with 30 day ROR warranty exchange only
The PS310, PS325 and PS350 are dual-polarity, 25 W supplies, while the PS355, PS365, PS370 and PS375 are single-polarity, 10 W supplies. All of the instruments are arc and short-circuit protected with separate programmable hard and soft current limits, making it possible to use them as constant current sources.
Whichever model you choose, you ll appreciate the convenience and versatility of the PS300 Series. Two large LED displays monitor the output voltage and current being delivered to your load. Overload reset, limit and trip status, local/remote state, and high voltage enable are also displayed, so you can monitor the instrument status at a glance. A highly visible red LED always indicates when the high voltage is on.
Operation is simple The parameter being adjusted or set is displayed separately and can be entered without affecting the actual output voltage. Up to nine instrument configurations can be stored and recalled at any time, making it easy to run multiple tests.
Both GPIB and RS-232 computer interfaces are standard on all 10 W supplies. GPIB is available as an option on the 25 W instruments. All parameters can be set and read via the computer interfaces.
A rear-panel analog input allows the high voltage output to be programmed by a 0 to 10 VDC signal. Two rear-panel analog outputs provide output voltage and current monitoring capabilities. These outputs drive up to 10 mA of current and have 1 output impedance.
The PS300 Series High Voltage Power Supplies are as useful in the R&D lab as they are in automated test applications. Wherever you are using them, the PS300 Series provide proven reliability and performance at a very affordable price.
Vset accuracy 1 V, typ. ( 2 V, max.)
Specifications apply for >0.5 % (full load) to >1 % (no load) of full scale voltage.
10 A (typ.), 20 A (max.) (PS310 and PS325)
1 A (typ.), 2 A (max.) (all other models)
0.01 % per hr., <0.03 % per 8 hrs.
50 ppm/ C, 0 C to 50 C (typ.)
Arc and short circuit protected. Programmable voltage limit, current limit and current trip
12 ms for 40 % step change in load current (typ.)
<6 s (to <1 % of full-scale voltage with no load, typ.)
0 to +10 V for 0 to full-scale output regardless of polarity
0 to +10 Volts for 0 to full-scale output regardless of polarity
<0.3 s for 0 to full-scale under full load
50 W, 100/120/220/240 VAC, 50/60 Hz
For test equipment I am the largest used Stanford Research Systems dealer in the world. I am also known for my HP / Agilent spectrum analyzer and function generator sales as well.
For test equipment I am very knowledgeable with SRS and HP agilent equipment : pricing , testing,reconditioning, and fixing basic issues. Every price that is listed is a price that the same unit sold for before at least a few times. I am not like the other dealers who list for rediculous prices that no one has ever bought it for in hopes they can make themselves rich. All my prices for musical instruments and scientific electronic test instruments are fair going rate prices.
Pickup is completely fine as well> I am located 50 minutes from Salt Lake City UTAH and Have another house In southern California.
