> Spirent smartbits at-9622S oc-12CS/stm-4, 1 port, sm

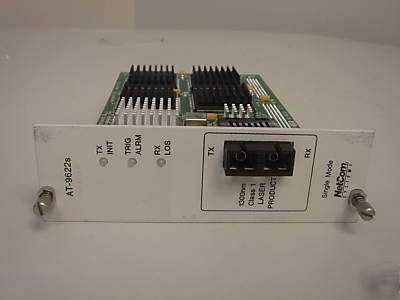

Spirent smartbits at-9622S oc-12CS/stm-4, 1 port, sm
Spirent Smartbits AT9622s OC-12c/STM-4 622 Mbps, SC Singlemode fiber 1300 nm
Applications include testing of:
- ATM-to-LAN internetworking devices
- Very high performance ATM backbones
- Frame-level testing at full-duplex.
- Full-wire rate on edge devices and switches.
- High-rate signaling testing for edge devices.
- Measurement of peak call rate and setup latencies for SVCs in SmartSignaling.
- Generates frames on up to 2,048 (AT-9045B, AT-9155/C/Cs, and AT-9622/s PVCs and SVCs).
- Supports PPP testing with up to 2,048 PPP sessions (AT-9045B, AT-9155/C/Cs, and AT-9622/s).
- Supports LANE testing with up to 64 LECs.
- Supports up to 800 (AT-9045B, AT-9155/C/Cs, and AT-9622/s) calls per second per port in SmartSignaling, for a total of 32,000 calls per second for a test suite of 40 ATM ports.
- Supports up to 8.38 million VCCs per port for a total of 335.54 million VCCs in a 40-port ATM test suite.
- Protocol support for ILMI, UNI 3.x, LAN Emulation Client 1.0, LLC/SNAP per RFC 1483, and Classical IP per RFC 1577, PPP per RFCs 1661 and 2364.
