Signum jtagjet-arm emulator with usb 2.0 jtag arm
Signum JTAGjet-ARM emulator with USB 2.0 JTAG
JTAGjet-ARM-USB is a small, palm-sized, JTAG emulator for ARM7, ARM9, ARM11, Cortex, OMAP, DaVinci and TMS320 devices. It comes with USB 2.0 high-speed interface that runs at 480 Mbps, which translates into over 1 MByte/sec actual program download speeds.
JTAGjet-ARM is a real-time, transparent in-circuit debugger for all ARM based devices. The emulator comes with High-Speed USB 2.0 port (480 Mbps) and features code download speeds of up to 1 MBytes/sec. The unit is small and does not have any fans or external power adapter. JTAGjet-ARM supports ARM ADS and RealView debuggers as well as dozens of other 3rd-party debuggers. A full-version of our Multi-Core Chameleon Debugger is included with JTAGjet-ARM.
JTAGjet is a small, palm-sized In-Circuit Debugger for the JTAG boundary scan ports. It is equipped with USB 2.0 port that runs at 480Mb/sec. JTAGjet-Trace has the same features as JTAGjet but contains the ARM ETM real-time trace buffer.
JTAGjet supports all ARM7, ARM9, ARM11, MPcore, Cortex-M3/R4/A8 and XScale based devices from all manufacturers. JTAGjet can be upgraded to support the Texas Instruments TSM320C6000, C5000, C2000, VC33, OMAP, OMAP2, OMAP3 and DaVinci devices.
JTAGjet is compatible with Linux and Windows workstations, making it an ideal tool for development of embedded Linux, WinCE and other RTOS based applications.
One of the unique JTAGjet features is that it may be used concurrently with other debuggers (like TI Code Composer Studio or eSOL eBinder), offering a complete multi-core debug environment.
Compatible with All Major ARM Debuggers
JTAGjet comes with a Flash Programmer that can recognize the type and geometry of the device and automatically configure the proper algorithm. Both NOR and NAND external devices are supported as well as on-chip internal Flash.
JTAGjet automatically detects all devices on the JTAG chain to properly configure the debugger. It also detects target power and target resets. That is why it is perfect for debugging the power-on/off and reset conditions, informing user about the state of target at all times.
Variable and Adaptive JTAG Clock
JTAGjet supports ARM cores with Adaptive Clock and can vary the JTAG clock frequency from 1kHz (for slow FPGA prototypes) to 30MHz for faster downloads and quicker Flash programming.
JTAGjet supports detachable target headers to accommodate various JTAG pinout standards and voltages between 1.4V and 5V.
* Download speed of over 1 MByte/sec.
* Autodetection of all devices on the JTAG chain.
* Automatic processor initialization on power-up and Reset
* Supports all ARM7,ARM9, ARM11 and Cortex devices from Agere, Altera, Atmel, Cirrus, Luminary, Motorola, OKI, Philips, Qualcomm, Samsung, Sharp, STM, TI and many others.
* Supports all Texas Instruments OMAP and DaVinci devices (ARM+DSP).
* Supports all TMS320C6000, C5000, C2000 and VC33 DSPs.
* Supports GSM and CDMA cell phone chipsets from Qualcomm, TI, Philips and Analog Devices.
* Compatible with Keil MDK-ARM, ARM ADS, EDGE, IAR, GHS, eSOL, Code Composer Studio and GNU compilers/debuggers.
* Adaptive, programmable JTAG clock speed (0-30 MHz).
* Integrated Smart Flash Programmer for NOR and NAND Flash devices.
* Full MMU support with Virtual to Physical memory mapping.
* CP15 co-processor support.
* Replaces Multi-ICE and XDS510 class emulators.

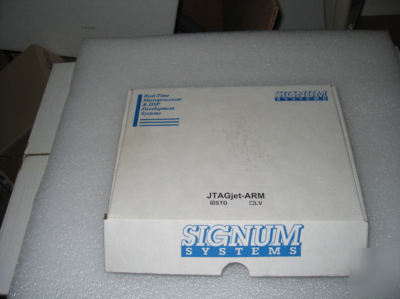

1 X Signum JTAGjet-ARM emulator with USB 2.0 JTAG
Guaranteed not D.O.A - Full money back or immediate replacement
