> Light control circuit breaker switch 12V lamp on/off dc
Light control circuit breaker switch 12V lamp on/off dc

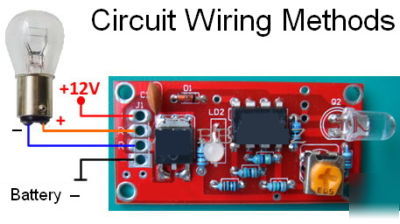

Photo Control 12 Volt Switch Circuit
Dimension: 51 * 28 * 14 MM (L*W*H)
This light-operated circuit is brief in circuit, with the characteristics of skillful design, stable and reliable operating and voice-free for any bounce. The high precise and high sensitive phototube is applied to inspect the light (instead of the old photoconductor). The total static current is 3MA for the combination of circuit and LED. Though the capacity is small, it is comfortable to undertake 30W, without contact and adverse connection.
The normal operation requires the input voltage of 10-18V, with the indicator of green and red for the status. Green refers to the correct power connection and the regular circuit. When the light is darker, LED turns to red, showing the start-up of light-operated circuit.
1. During the operation, the load two lines should not be short circuit, or the circuit will be burned down. We will not be responsible for this action.
2. The light-operated switch should be placed on the point without the light, for the phototube can inspect the light and it will cut off the circuit as inducing it. The absence of light will launch the circuit, which forms the status of flashing light!
