Ge type sb-9 rotary switch 2-pos w/cam 16SB9CB0A03SSX2R

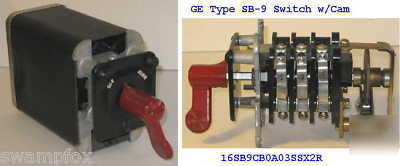

General Electric Type SB-9 Rotary Switch with Cam

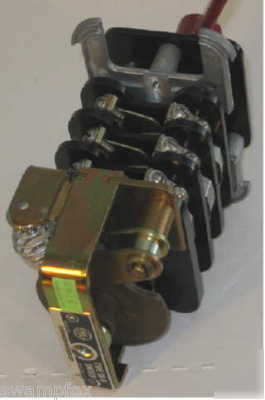

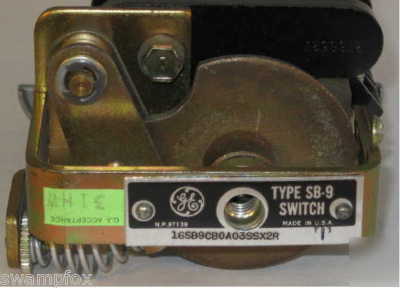

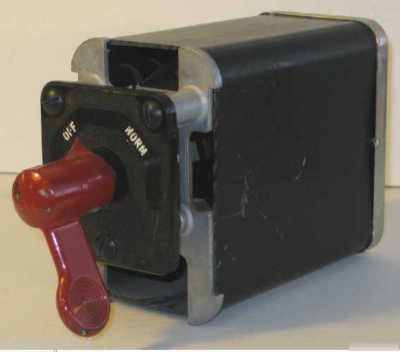

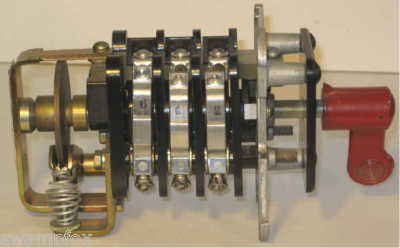

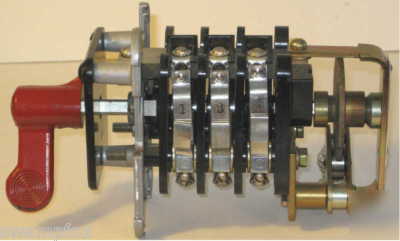

The handle has two positions, labeled OFF and NORM. In the OFF position, 5 and 6 are closed. In NORM, numbers 1, 2, 3 and 4 close (5 and 6 are open). NOTE: I'm not really sure what the cam is for. It has what looks like a spring-type tension adjustment, so possibly it determines how much force is needed to turn the handle?
NOTE: I have four of these available. The only difference is the 4th one has a light green colored handle instead of red. Let me know if you want additional ones listed.
This item weighs almost 2-1/2 pounds. Total overall length is 7-3/4 inches (not counting locking nut on back of cover). Boxed (switch cover) section measures 2-7/8" wide, 5-1/4" deep, 4-3/8" tall.
Any questions, please email. Thanks for looking!
