#mc-1000V5 matsuura 4X vertical machining center '85

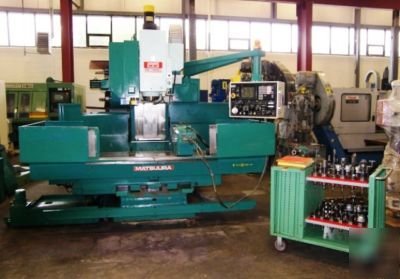

Preowned MATSUURA Four-Axis Vertical Machining Center, Model MC-1000V5 S/N 85034575 (New 1985)
Vertical travel of spindle (Z)
Minimum/Maximum distance, table top to spindle
Minimum/Maximum distance, table center to column
Maximum distance, from spindle center to column
Spindle speeds, infinitely variable
Number of positions in tool changer
Tool change time (tool to tool)
Cutting Feed rate, X, Y & Z axes
(35) Position bi-directional tool magazine with (71) BT 45 tool holders
#11M FANUC four-axis CNC control with RS-232C serial port
#RNCV-301R TSUDAKOMA 12.6" rotary table, S/N 512857, face plate diameter
12", table height flat (horizontal) 8.66", table center height (vertical) 8.27", overall
height in vertical position 15"
Rolling tool cart with tool setter
Hydraulic unit with 5 H.P. 3/60/220 volt pump motor and tank
Coolant system with external pump and tank
20/25 H.P. (Continuous Duty/30 Minute) AC spindle drive
Machine is wired for 220 volt operation.
