Gardner 2H20-23 opposed face grinder w/ gun feed rare

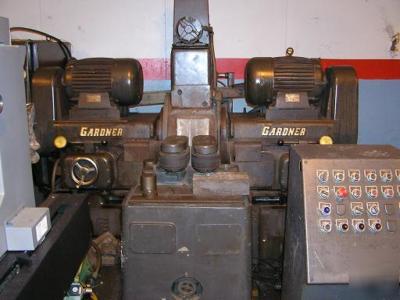

Gardner 2H20-23 Opposed Face (Double Disc) Grinder
Has BOTH Thru-Feed and Gun-Feed Attachment
Abrasive Disc Diameter......................23"
Max Thickness of Usable Abrasive............23"
Max Work Width..............................2-1/2"
Head Feed Increment.........................0.0001"
Front Handwheel Graduation..................0.0001"
Rear Handwheel Graduation...................0.001"
Total Movement of Each Spindle Housing......5"
Spindle Drive Motor.........................25 HP
Fixture Drive Motor.........................1/2 HP
Coolant Pump Motor..........................1/3 HP
Dimensions..................................91"x99"x58.5"
Weight......................................12,250 lbs
