> 20 pcs. of pic microchip pic-P28 prototype board
20 pcs. of pic microchip pic-P28 prototype board
Click for view in large resolution PIC-P28 prototype board: top side view
Click for view in large resolutionPIC-P28 prototype board: bottom side view

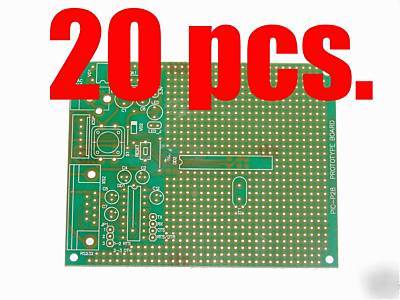

This lot contain 20 pcs. of PIC-P28 prototype board for 28-pin PIC Microchip controllers
With this board you can develop and prototype with any of Microchip's 28 pin PIC microcontrollers. The RS232 driver on board allows easy connection with PC or other embedded hardware. The board have User button and status LED. The bridge rectifire allow this board to be powered with both AC and DC power supply adapters. PIC-P28 supports both 3.3V low power and normal 5V operation.
1. ICSP/ICD connector for programming with any PIC programmer or debugging (EXTRA-PIC, JDM PIC, ICD2, PICkit2 or other),
2. RS232 Tx, Rx interface with MAX232 IC
3. DIL28 microcontroller socket
5. LED to RA0 through jumper
10. Extension slot on every uC pin
14. Four mounting holes 3 mm (0,13")
15. FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print .
16. Dimensions 100x80 mm (3,9x3,15")
* PIC-P28 component placement, top side
* Blinking LED PIC16F876 demo code ( source and HEX)
* Button PIC16F876 demo code ( C source and HEX)
* RS232 receive/transmitt PIC16F876 demo code (C source and HEX)
