18" x 20" marvel universal vertical band saw model: 81

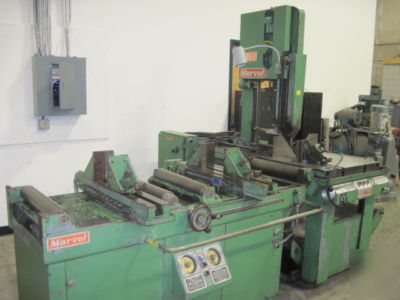

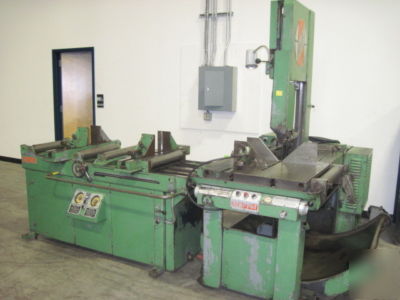

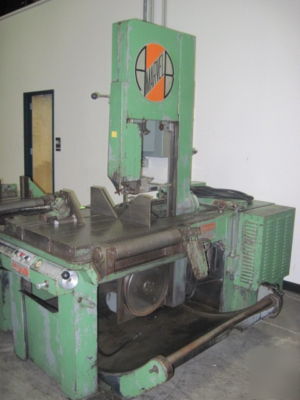

18" X 20" MARVEL UNIVERSAL VERTICAL BAND SAW
MODEL: 81A, S/N: D-1380, NEW: 1969
NOMINAL ......................... 18" x 20"
BLADE AT 45 DEGREE ANGLE ........ 18" x 12-1/2"
TABLE WORKING SURFACE, T-SLOTTED ...... 30"W x 33"L
HEIGHT, FLOOR TO TABLE ................ 37"
BLADE LENGTH .......................... 14'6"
BLADE WIDTH/GAUGE ..................... 1" / .035" thick
MAXIMUM VISE OPENING .................. 21-1/2"
HEIGHT OF VISE JAWS ................... 7"
WIDTH OF VISE JAWS .................... 12"
INF VARIABLE BLADE SPEEDS ............. 55-340 FPM
FEED PRESSURE RANGE, INF VAR .......... 0-300 lbs
MAX WEIGHT CAP. ON SHUTTLE FEED TABLE . 7,000 lbs
APPROX WEIGHT ......................... 7,700 lbs
FLOOR SPACE ........................... 23' x 108" x 89-3/4"

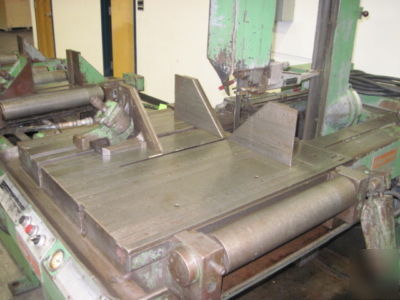

AUTOMATIC INDEXING SHUTTLE BAR FEED TABLE w/ (2) HYD CONTROLLED VISES
HANDWHEEL FOR SETTING THE AUTOMATIC BAR FEED SHUTTLE TO
INDEX WITHIN THOUSANDTHS OF AN INCH. THE SHUTTLE WILL INDEX FROM 1/16" TO 24" PER SINGLE CYCLE
A MULTI-CYCLE CAN BE EMPLOYED FROM 2 TO 19 SHUTTLE CYCLES BETWEEN SAW CUTS
CYCLE SELECTOR SWITCH: CONTROLS EITHER SINGLE CUT OF FULL
MANUALLY OPERATED TILT FRAME WITH PROTRACTOR
HYDRAULICALLY ACTUATED MACHINE VISE
7.5 HP HYD ACTUATED BLADE DRIVE MOTOR & ELEC CONTROLS
Inspect Under Power in Our Branchburg NJ Warehouse
