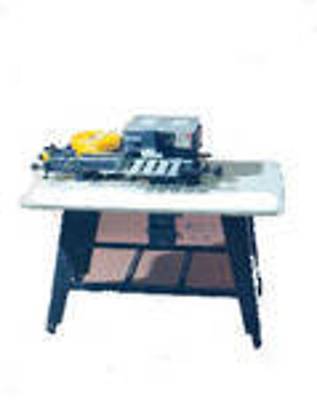

Scott tab cutter w/table + scott 1800 tab machine w/tab
4000 SHEETS PER HOUR MAY BE ACHIEVED.. THE MACHINE DOES EVERYTHING AUTOMATICALLY FROM FOLDING PLASTIC TO CUTTING IT TO THE DESIRED LENGTH, TO BONDING IT TO BOTH SIDES OF THE PAPER. 2 SETS OF DIES COME WITH 1/2 AND 1/4..
* MAX CYCLE RATE...4500 PER HOUR
* AIR CONSUMPTION...3.5 CFM @80 PSI
* POWER CONSUMPTION... 515 WATTS @115 VAC
* MAX PLASTIC LENGTH...APPROX 5 1/2"
* HEAT UP TIME APPROX 15 TO 20 MINUTES
* LUB RATE...1 DROP PER 15 TO 20 CYCLES
* OPERATING TEMP...APPROX 200 DEGREES F
* MIN SHEET SIZE 5 1/2" DEEP
THE SECOND ITEM IS A SCOTT HEAVY DUTY TABCUTTER CUTS 4,000 TO 8,000 TABS PER HOUR.
AUTO CUTS TABS AS FAST AS PAPER CAN BE FED INTO THE MACHINE
CHANGING TABS CAN BE DONE IN SECONDS..HAS MANY VARIETY OF SHEET SIZE, EXTRA LONG KNIVES PERMIT 15" SHEET TO BE CUT WITH A 1" TAB IN FIRST POSITION..
* BALL BEARING ON ALL MOVING PARTS
* TABLE TOP MEASURES 48"X 15 3/4 X 3/8
* TABLE HEIGHT MAY BE ADJUSTED FROM 32 1/2 TO 39 1/2
* KNIVES ARE HARDENED PRECISION GROUND TOOL STEEL
