Hioki 4 channel memory hi corder chart recorder #8801

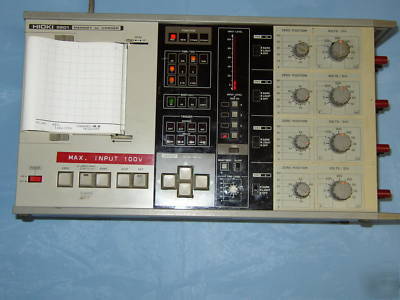

Hioki 4 Channel Memory Hi Corder Chart Recorder#8801
Used surplus equipment in good, functioning condition
* Dual Capability Waveform Recorder
* Analog and Digital Waveforms Stored and Recorded
* Four Channel Simultaneous Recording
* Digitizes and stores high-speed and transient phenomena, then accurately reproduces the waveform on an easy-to-read recording chart.
* LEDs assist the operator in making control settings and monitoring recorder operation. Function, TIME/DIV, SHOT (DIV), and trigger selection are all simple key operations. And a 12-point LED level meter provides a constant means of monitoring input level amplitudes.
* Recording speed ranges from 100 s/DIV to 5 sec/DIV (equivalent chart speed to 90 m/s). Four trigger timing settings. Dots or lines can be used to record waveforms. 1/5th time-base compression setting.
* 4-channel simultaneous recording is possible in this mode, with chart speeds ranging from 1 sec/DIV to 50 min/DIV (1 sec/DIV = 54 cm/min). Sampling speed high enough to reproduce audible frequency wavform envelopes.
* High Speed X-Y Recorder:
* Three channels (X-Y1, X-Y2, X-Y3) can be recorded in this mode, making the recording of Lissajous figures and other X-Y plots possible at memory recorder speeds.
* Continuos X-Y Recorder:
* Recording time is unlimited in this mode, with the recording overlapped accordingly. X-Y phenomena can be recorder in up to three channels, accommodating signals ranging as high as several hundred hertz.

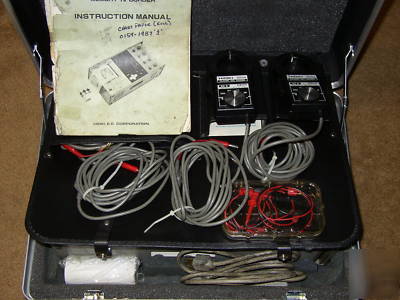

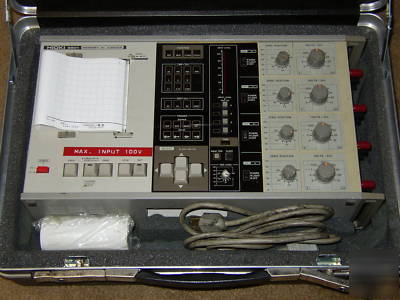

* Hioki Memory Hi Corder #8801 w/ Power Cord
* Three Hioki 500 AC Amp Clamp-on Ammeter Probes #9008
* Carrying / Storage Case w/ Key
