Futaba frn-0602U frn industrial remote construction

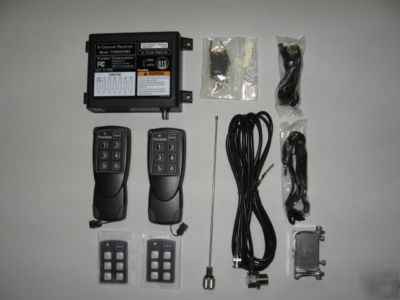

The Futaba FRN-0602U 6-channel radio remote control system offers exceptional value in a small industrial remote control. With microprocessor control in both transmitter and receiver, the unit provides remote control of up to 6 relays.
Application possibilities include conveyors, hoppers, stop light systems, construction machinery, boom trucks and much more. Exclusive direct sequence data encoding techniques provide a system with excellent reliability and immunity to false activations from noise and interference. Additionally, 16-bit system identification codes offer excellent security.

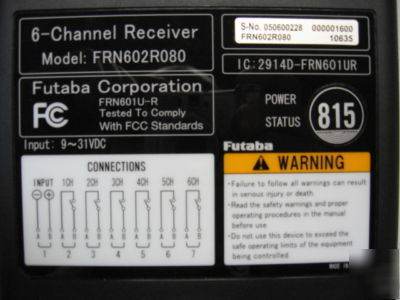

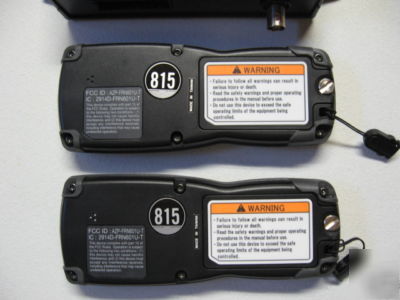

Housed in an injection molded high impact plastic case with water resistant gaskets, the transmitter s sealed membrane switches assure long life in an industrial environment. The receiver, also in an injection molded high im pact case, operates on 12 or 24 VDC power. An optional UL /CSA approved 120V power supply is also available. Momentary dry pair outputs are standard, with optional latching outputs and switched source voltage contacts available.
* Frequency range 317.350 to 318.350 MHz
* Frequency control PLL synthesizer, 20 frequency channels
* Baseband data format direct sequence encoded
* Communication mode simplex
* Error checking CRC technique
* Data channels 2, 4, or 6 discrete
* Security 16 bit ID code (65,536 unique codes)
* Response time 200 ms average (from standby mode)
150 ms average (re-operated within 4 s)
* Operating temperature 4 to +140 F ( 20 to +60 C)
* Storage temperature 4 to +158 F ( 20 to +70 C)
* Humidity up to 90% RH, non-condensing
* Shock Peak acceleration of 500 m/s2 and action time of 11ms when not communicating
* Vibration Tx: 4.4 G Rx: 6.8 G (JIS D1601-1995 3-B-70)
* Operating Distance : 400 FT.**
* Supply voltage 3.6 to 4.5 VDC (3 AAA alkaline batteries)
* Maximum current consumption 26 mA (RF active), 10 mA (idle mode)
* Transmission power < 6000 V/m at 3 m
* Battery life continuous operation: 30 hrs (alkaline batteries)
* Power saving features RF emissions off delay: 4 s auto power off delay: 3 min
* Case water resistant (JIS D0203-1994 R1) and dustproof, high-impact black resin
* Dimensions 5.79 x 2.32 x 0.94 in (147 x 59 x 24 mm)
* Weight 3.5 oz (100 g) excluding batteries
* Design type double-conversion super-heterodyne with convolutional decoding
* Receiver sensitivity < 110 dBm
* Discrete channel outputs 2, 4, or 6 electromechanical relays, SPST normally open
* Relay configuration FRN-02/04/0601U: relays provide switched supply voltage FRN-02/04/0602U: relays provide dry contacts
* Relay ratings resistive load: 5 A, 31 VDC/120 VAC maximum (cos ; = 1.0) inductive load: 2 A, 31 VDC/120 VAC maximum (cos ; = 0.4)(total combined current for FRN-02/04/0601U relays: 8 A)
* Supply voltage 9 to 31 VDC
* Maximum current consumption 0.8 A (6 relays activated), 60 mA (idle mode)
* Antenna external 1/4 whip, 10.24 in (260 mm), UHF metric male
* Antenna cable RG-58/U coaxial, 13.1 ft (4 m), BNC male to UHF metric female
* Case splash resistant and dust proof (JIS D0207-1977 F2), high impact black resin
* Dimensions 6.77 x 4.61 x 1.81 in (172 x 117 x 46 mm), excluding antenna
* Weight approximately 13.1 oz (370 g) excluding antenna
**operating distance is dependant on local conditions**
