> Flowline LP75-2001-018 symprobe rf level transmitter
Flowline LP75-2001-018 symprobe rf level transmitter
This listing is for a transmitter.
* Cat / Model / Part #: LP75-2001-018 (LP752001-018) (LP75-2001018) (LP752001018)
* Here is a rundown of the part #...
* LP75 = Standardized #
* 018 = Probe Length - US 18in / 46cm
* Description: Symprobe RF (Radio Frequency) Capacitance Level Transmitter
* List Price: Approximately $1200
Here is some information from the manufacturer's catalog...
The general purpose two-wire capacitance transmitter provides contact level measurement up to 10 or 3m, and is ideally suited for clean, water-based, non-coating corrosive liquids with constant chemistry. The transmitter is typically selected for pressurized day tank and process vessel applications. Media examples include nitric and hydrochloric acid.
* FEP probe for use with highly corrosive acid solutions
* Self grounding probe does not require reference in plastic tanks
* Easy potentiometer calibration with power LED and span invert switch
* Range: 1' to 10'/ (30 cm to 3m)
* Accuracy: 1% of full span
* Resolution:0.125" (3 mm)
* Conductive range: > 100 micromhos
* Dielectric range: > 20 constants
* Capac. range: 100 to 1000 pF
* LED indication: Power status
* Supply voltage: 14-36 VDC
* Loop resist.: 600 Ohms @ 24 VDC
* Signal output: 4-20 mA, two-wire
* Signal invert: 4-20 or 20-4 mA
* Calibration: Potentiometer
* Process temp.: F: -40 to 158 / C: -40 to 70
* Electronics temp.: F: -40 to 140 / C: -40 to 60
* Pressure: 75 psi (5 bar) @ 25 C., derated @ 1.667 psi (.113 bar) per C. above 25 C.
* Enclosure rating: NEMA 4X (IP65)
* Encl. material: PP, UL94VO
* Process mount: 3/4" NPT (3/4" G)
* Mount. gasket: Viton (G version only)
* Conduit entrance: Single, 1/2" NPT
* Classification: General purpose
* CE compliance: EN 61326 EMC

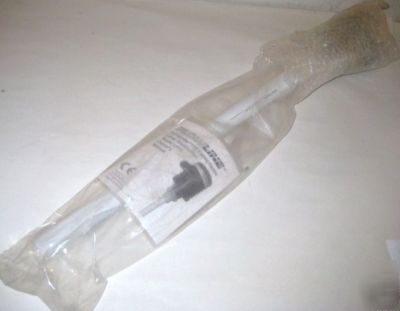

This is new in box. Guaranteed to be in proper, working order.
