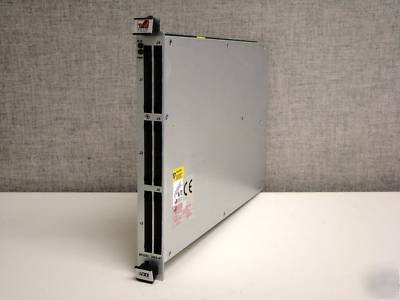

Ascor 3000-47 dual vxi switch matrix module
ASCOR 3000-47 Dual 8x16 High Density VXI Switch Matrix Module
Description: The Ascor 3000-47 is a High Density VXI Switch Matrix Module. The 3000-47 is a high density, two-wire switch matrix featuring ASCOR's individually shielded relay pairs, in a high bandwidth-high signal to noise ratio switch maatrix. The Ascor 3000-47 is a high density module for supporting various high performance ATE test applications. The 3000-47 module has an 8x32 two-wire matrix or dual 8-16 two-wire matrices with fully shielded relays over an analog ground. Some of the features of the Ascor 3000-47 are:
* Single-slot C-sized VXI module
* Bandwidth (-3dB): >90MHz differential
* Fully coaxially shielded relays
* All relays are shielded and connected to common shield plane
* High signal to noise ratio
* Switching voltage/current: 200Volts/0.5Amps
