Series 4 spade drill holder 10 inch flute kennametal

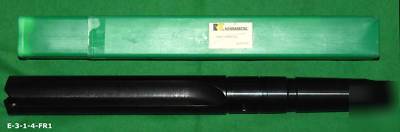

(E-3-1-4-FR1) THIS IS A NEW NEVER USED SERIES 4 SPADE DRILL HOLDER MADE BY KENNAMETAL. THE FLUTE LENGTH IS 10 INCHES, OVERALL IS 18-1/4. NUMBERS ON THE BOX READ 40579000602 AND S28CJ5. I BELIEVE THE SHANK IS A #5 MORSE, BUT IT IS SHORTER THAN WHAT MY REFERENCE BOOKS SHOW. LARGEST DIAMETER ON SHANK IS 1.626, SMALLEST ON TAPER IS 1.485, LENGTH OF THE TAPER INCLUDING THE DRIVE TANG IS 4-1/2 INCHES. LOOKS LIKE A SHORT #5 MORSE BUT NOT A STUB MORSE. IT MAY STICK BACK INTO THE HOLDER MORE THAN WE ARE USED TO. IF YOU TRY IT FOR A #5 FIT AND IT DOESN'T YOU MAY SEND IT BACK. MSC SELLS SIMILAR TOOLS FOR OVER $336 IN THEIR 2008 BOOK.
