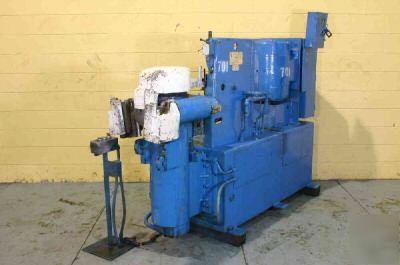

Pines model #14T vertical hydraulic bender
PINES MODEL #14T VERTICAL HYDRAULIC BENDER
SERIAL ................................ 44810-66177
MODEL ................................. 14T
CAPACITY .............................. 14 TONS
MILD STEEL TUBING ..................... 1-1/2" X .065" WALL
STAINLESS STEEL TUBING ................ 1-1/2" TUBING X .065" WALL
SQUARE TUBING - MILD STEEL ............ 1-1/2" TUBING X .065" WALL
ROUND BAR TUBING - MILD STEEL ......... 1-1/2"
BEND ANGLE W/NORMAL TOOLING ........... 150 DEGREES MAX.
CENTERLINE RADIUS ..................... 5-1/2" MAXIMUM
SINGLE TUBE ........................... 600 BENDS PER HOUR
TWO TUBES ............................. 1000 BENDS PER HOUR
MANUAL BEND SELECTOR .................. YES
3-BUTTON PEDESTAL CONTROL ............. YES
MOTOR ................................. 20 HORSEPOWER
