> Hp - agilent 8566B 22 ghz spectrum analyzer w/extras

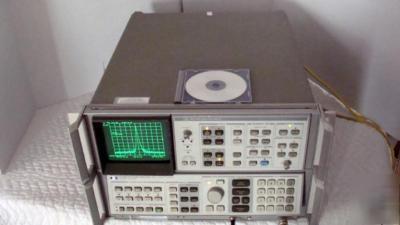

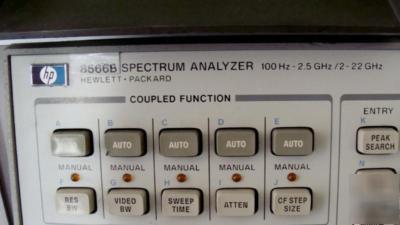

Hp - agilent 8566B 22 ghz spectrum analyzer w/extras
GET ONE OF HP/AGILENTS BEST SPECTRUM ANALYZER THEY MADE.

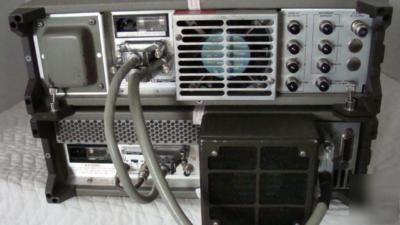

THIS IS THE COMPLETE SYSTEM. PLUG IN THE CABLES, PLUG THE IF AND DISPLAY IN AND OFF YOU GO!
The IF section was converted from a HP 8566A to a HP 8566B by the HP - Agilent company. The posessor, program, and control board where switched out. This is a regular HP 8566B Spectrum analyzer.
This is the industry standard, highest performance spectrum analyzer on the market. The frequency range is 100 Hz to 22 GHz and the capability of going up to 325 GHz with external mixers(not included). The excellent frequency stability allows measurements with a 10 Hz resolution bandwidth. Amplitude range is -134 to +30 dBm. The 8566B also has internal storage of user-defined routines to speed your test procedures. Plotters, printers, signal generators and power meters can be controlled by the 8566B with used-defined softkeys. The 8566B is fully HP-IB progammable and has direct plot capability.
