Falcon - shrink tunnel tun-5030

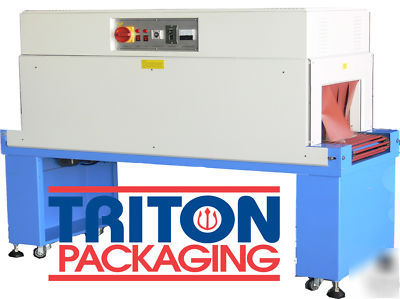

NEW IN BOX Falcon Shrink Tunnel
The shrink tunnel TUN-5030 supplies heated air to an enclosed chamber for the purpose of shrinking a polymeric film around a package for physical protection and improve the appearance of containers or products. This tunnel includes an electronically controlled conveyor for carrying packages through the chamber.
* Simple to use with Minimal operator training
* High density roll conveyor
* Max. Packaging Dimensions: L 19.5" (487.5mm) x H 12" (300mm)
* Work Efficiency: 2000-3000 Packages Per Hour
* Conveyor Rollers Length 14 1/2" ( mm)
* Rolling casters and adjustable height feet. (Approx. Range: 2 Inch)
* Heat System on/off Switch.
* Heat System Indicator Light.
* Air System Indicator Light.
* Temperature Controller (0 to 200 C).
* Electronic Conveyor Speed Controller.
* Control Panel Mounted Ammeter. (Shows operating line current)
Power: 12 KW / Max 45 Amps per Line
Tunnel Path Dimensions: 52 x 20 x 12
Machine Dimensions: L 66 (1676mm) x W 31 (786mm) x H 67 (1701mm)
Machine Weight: 746 lbs (339 Kg)
Box Dimensions: L 70 (1778mm) x W 34 (864mm) x H 46 (1168mm)
