Chatillon 2 lb x 0.02 lb force gauge dpp-2
CHATILLON 2 lb x 0.02 lb FORCE GAUGE DPP-2
CHATILLON ergonomically designed push & pull gauges are ideal for a wide range of force testing applications. The rugged, cast aluminum housing fits naturally in the hand for a comfortable and firm grip even at maximum loads. Gauges may be mounted to a test stand for even greater control and consistent results in repetitive testing applications.

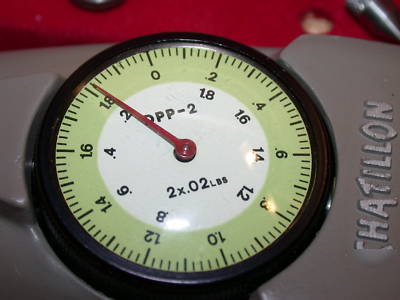

Easy to read concentric dial measures clockwise or counterclockwise depending on the direction of force. Because of the push & pull operation, either end of the gauge may be used for tension or compression. Dial rotates 360-degrees for taring.
A maximum reading pointer captures peak readings and can be easily and quickly returned to zero. A mechanical overload feature protects the gauge from damage.
Durable Housing: The DPP is made of strong, die-cast aluminum for rigorous use. It fits naturally into the operator's hand and affords a firm, comfortable grip-even at maximum loads.

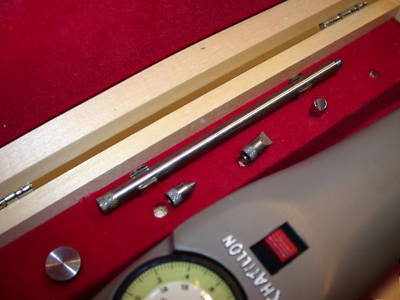

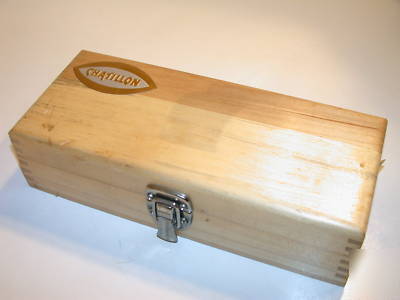

Stainless steel accessories are included for performing a wide variety of measurements: flat head, V-notched head, hook, cone, chisel and extension rod. All are furnished with the gauge in a cushioned Wood carrying case.
Safety Factor: Mechanical overload protection
Capacity x Graduation - 2 lb x 0.02 lb
http:// /Our%20Products/Spec%20Sheets/dpp_series.pdf

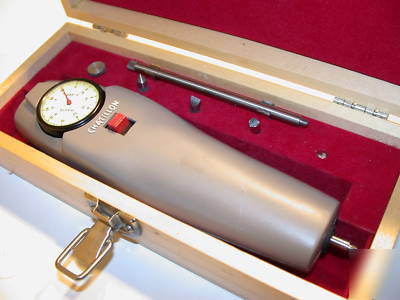

This is a very nice gauge with attachments shown.
