Agilent E4436B/UN8 signal gen., 30-day warranty

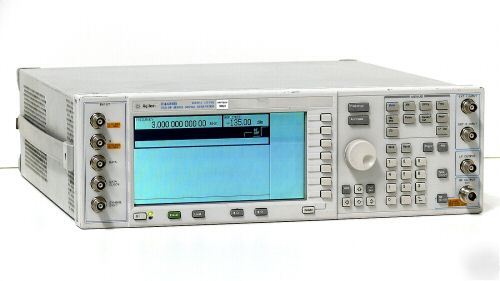

Agilent/HP E4436B/UN8, ESG-DP Series Digital RF Signal Generator, 250 kHz to 3 GHz
The HP-Agilent E4436B is an ESG-DP Series RF signal generator that offers excellent spectral purity and digital modulation capabilities ideal for general-purpose research and development bench-top use. It generates standard and custom digital modulation formats, filtering and burst shapes, as well as versatile analog modulation, with superior quality, reliability and worldwide support.
Supported by Agilent until: 1 November 2010
* 250 kHz to 3 GHz frequency range
* Enhanced phase noise performance
* SSB Phase Noise Range -134 dBc/20kHz - -120 dBc/20kHz
* Output Accuracy +/- 0.5 dB - +/- 0.9 dB
* Output Range -136 dBm - +13 dBm
* Time Base Stability +/- 1ppm
* AM, FM and pulse modulation
* Internal modulation source for complex waveforms
* Custom digital modulation (more than 15 variations of FSK, MSK, PSK, and QAM), AM, FM, phase modulation, pulse modulation, and step/list sweep (frequency and power)
* E443xB Signal Studio software personalities (Bluetooth, 1xEV-DO)
* E443xB firmware personalities (3GPP W-CDMA, cdma2000, IS-95-A, GSM/EDGE)
* GPIB and RS-232 connectivity
Accessories included: Copies of User, Programmer and Service Guides; US-type power cord
