> 5PCS KA2S0680B power switch (sps) switching regulator

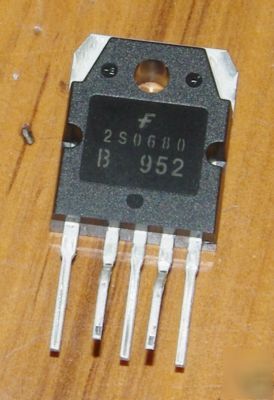

5PCS KA2S0680B power switch (sps) switching regulator
Suitable for Switching Regulator/Power Supply
Brief Specification (Databook is available upon Request)
2. Repetitive rating: Pulse width limited by maximum junction temperature
3. L=24mH, VDD=50V, RG=25 , starting Tj=25 C
Maximum Drain voltage (1) VD,MAX 800 V
Drain-Gate voltage (RGS=1M ) VDGR 800 V
Gate-source (GND) voltage VGS 30 V
Drain current pulsed (2) IDM 24.0 ADC
Single pulsed avalanche energy (3) EAS 455 mJ
Continuous drain current (TC=25 C) ID 6.0 ADC
Continuous drain current (TC=100 C) ID 4.0 ADC
Maximum Supply voltage VCC,MAX 30 V
Input voltage range VFB 0.3 to VSD V
Operating ambient temperature TA 25 to +85 C
