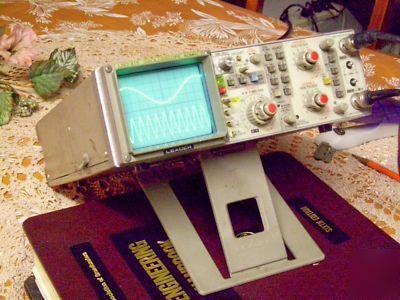

Oscilloscope, leader model lbo-315-a, portable
LEADER Modelo LBO-315-A. Serial number 7050087
USED: Checked and factory calibrated ( certificate included )
Enclosed: Two test leads (probes) x1/10 switchable, Carrying Samsonite bag, and instruction manual with certificate of calibration.
The LEADER 60 MHZ, model 315-A, double trace oscilloscope, works from 85 to 264 VAC, 50-400 HERTZ, autoswitched, or a NI-CAD battery pack of 12 Volts (not included). The scope produces the necessary charging voltage. Also, can operate from the automobile 12 Volts system, negative grounded only, adaptor included.
INTRODUCTION: (From the manual):
The LBO 315-A is a 5mV/div 60 MHZ portable oscilloscope that offers a maximum sweep rate of 20ns/div (MAG x 10) and a delayed sweep function . It features aluminized screen, 95mm rectangular PDA CRT for high brightness and sharply defined display. The LBO-315-A is extremely portable since it can be operated using three different free-voltage power sources.
Due to a variety of convenient functions, such as a TV sync separator and variable hold-off, the LBO 315-A is particularly effective when used in the servicing of TV receivers, VTRs, and computers.
