Ms-3 compact laser barcode scaner microscan FIS00030012

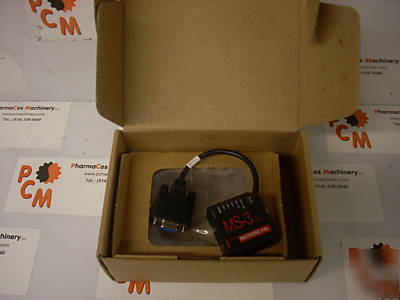

MS-3 Compact Laser Barcode Scaner Microscan FIS00030012
Read Range: 2 to 10 (51 to 254 mm)
The MS-3 laser scanner offers the fastest read performance in embedded compact bar code scanners. The wide scan angle of 70 degrees is coupled with ultra-compact size and flexible mounting.
High performance and flexibility make the MS-3 the optimal choice for reliable reading in embedded instruments.
Compact & Lightweight: The 1.75 (44.5 mm) square by .85 (21.6 mm) tall scanner weighs only 2 ounces (57 g) for easy mounting onto robotic equipment or into tight spaces.
High Scan Speed: Adjustable scan speed from 300 up to 1000 decodes per second and Microscan s world-class decode algorithms ensure accurate reading every time.
Wide Scan Angle: The wide scan angle of over 70 degrees and a factory customizable focal point add up to space savings within your system, allowing greater flexibility with positioning.
Visible Indicators: Illuminated LEDs on top of the scanner provide visual confirmation of the scanner performance.
Real-time Controls: The inputs include a trigger signal, a new master input, and a programmable input for resetting counters or releasing outputs. The outputs can be configured to activate upon a variety of conditions including matchcode and diagnostic operations.
Weight (standard case): 2 oz. (57 g)
Options: single line, fixed raster
Scan rate: Adjustable from 300 to 1000 scans/second, default=500
Label contrast: 25% min. @ 650 nm
Interface: RS-232, RS-422/485 (up to 115.2k), Keyboard Wedge, USB
Type: 3 ft. cable terminated with High Density 15-pin D-Sub socket connector
Code 39, Codabar, Code 128, I 2 of 5, Code 93, UPC/EAN, Pharmacode, PDF417 (option)
