Mini-circuits zfsc-3-13 power splitter 3 way 1-200 mhz

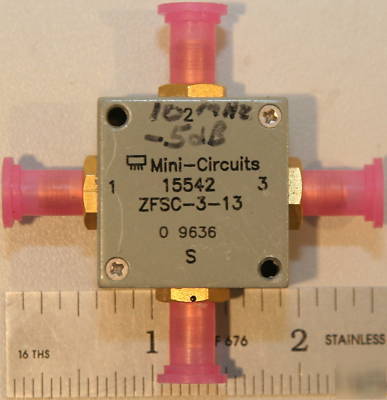

Mini-Circuits ZFSC-3-13 Power Splitter/Combiner
Mini-Circuits ZFSC-3-13 Specifications:
* Frequency Range: 1-200 MHz
* Low Range [Fq-low to 10 Fq-low]: 45 Typ., 30 Min.
* Mid Range [10 Fq-low to Fq-up/2]: 48 Typ., 35 Min.
* High Range [Fq-up/2 to Fq-up]: 37 Typ., 30 Min.
* Low Range [Fq-low to 10 Fq-low]: 0.25 Typ., 0.5 Max.
* Mid Range [10 Fq-low to Fq-up/2]: 0.35 Typ., 0.6 Max.
* High Range [Fq-up/2 to Fq-up]: 0.35 Typ., 0.6 Max.
* Mid Range [10 Fq-low to Fq-up/2]: 3 Max.
* High Range [Fq-up/2 to Fq-up]: 5 Max.
* Low Range [Fq-low to 10 Fq-low]: 0.1 Max.
* Mid Range [10 Fq-low to Fq-up/2]: 0.2 Max.
* High Range [Fq-up/2 to Fq-up]: 0.2 Max.
Mini-Circuits ZFSC-3-13 Data Sheet
