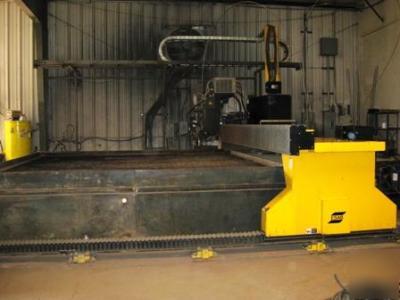

Esab LR12 water jet plasma cutter
General Specifications per manufacturer:
Cutting Width: ........................ 153.5" (with one head)
Internal Clearance: ................... 165.75"
Max Height to top of water jet station: 84"
Parking Area: ......................... 89"
Maximum Water Jet Stations: ........... 4
Maximum Plasma Stations: .............. 2
Maximum Speed: ........................ 0.1 - 600 ipm (2.5 - 15,240mm/min)
Power Requirement: .................... 230/460/575vac, 3-Phase, 20/25/45Amps
Rail Gauge: ........................... 177.75"
Machine Width: ........................ 225"
3 Axis Gantry with Rack-and-Pinion Drives
Fully enclosed Y-axis beam and drives
Welded, Machined Trucks with Oversized Wheel Bearings
Machined Mating Surfaces for high stiffness and accuracy

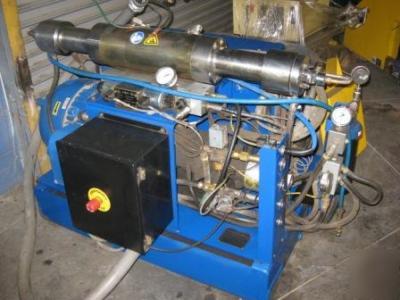

30, 50, 60, 75, 100, 150 and 200 HP Intensifier Pumps Available
Digital AC Drive Amplifiers for years of maintenance free operation
AC Brushless Motors for wide speed range with accurate speed control
Precision Heavy-Duty Gearboxes for accuracy and smooth motion
Precise speed control down to 0.1 inches per minute (2.5 mm/min)
Maximum Machine Speed: 600 ipm (15,240 mm/min)
Cross Axis Powertrack Hose & Cable Carriers
Positioning Accuracy: +/- .010", Repeatability: +/- .002"
Machined Heavy-Duty "T" Rail System For Accuracy and Durability
Precision drive rack mounted directly to machined surface for precise rack
- LR12 (12' cutting width with one tool station, this machine has 2 tool
stations so the cut width for both would be about 11')
- 18' rail system (10'6" cut length)
- fiber optic ethernet media converters and 200' of fiber optic cable

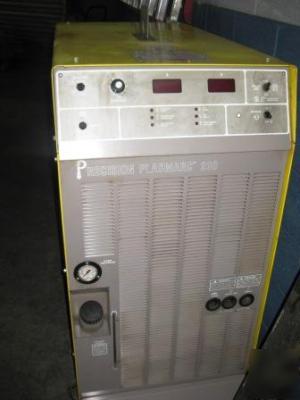

- 200 amp plasma with PT-600 torch and air / water muffler
- Columbus software (requires hardware dongle on computer to run)

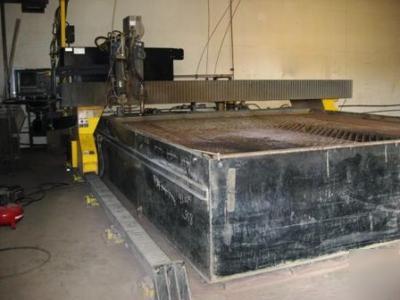

- 12' x 12' cutting table with manual raise/lower water level control

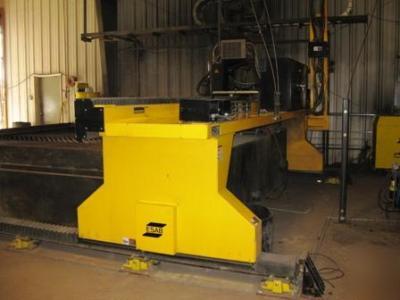

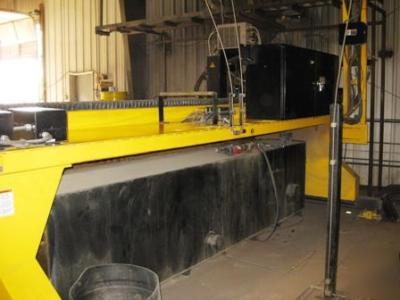

The gantry features all welded, stress relieved, reinforced components with all contact surfaces machined to ensure accurate matchup with mating surfaces. Machined wheels and roller bearings provide smooth, precise machine motion. The thick wall box beam provided ample strength and stiffness to support the process stations over a maximum of 20 ft. width. An independent reinforced lock supports all auxiliary equipment without placing any additional torsional forces on the main beam.

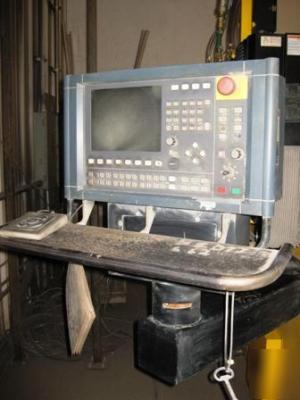

It can be equipped with ESAB's VisionT 52 Computer Numerical Control for the most advanced waterjet optimized motion control in the industry. Process control for any material is as easy as selecting the material type and thickness.
The main rail system is a floor mounted assembly with machined "T" rails mounted on fully adjustable cast steel pads, and protected by bellows covers (not shown). This allows almost unlimited cutting lengths. The "T" rails are machined on three sides and are tongue-and-groove on the ends to interlock at joints, thereby eliminating sideways movement. Adjustments are provided on the mounting pads to facilitate leveling and alignment. Drive racks are mounted directly to the machined surface of the rail, ensuring proper alignment.

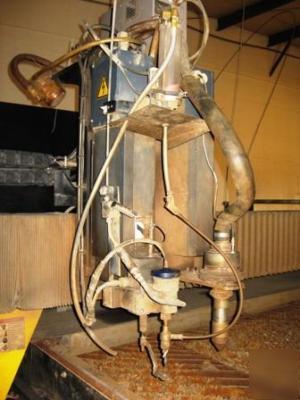

The beam, ways, and drive rack are all protected by way covers, and all process stations use a fully enclosed high-speed vertical lifter. Smooth,
accurate motion is provided by digital AC drive amplifiers, AC brushless motors and precision planetary gear boxes. The system is geared for the
waterjet process, providing travel speeds from 0.1 to 750 ipm (2.54 - 19,050 mm/min).
Please contact Sue Zeller ****@automatics.com with any questions.
