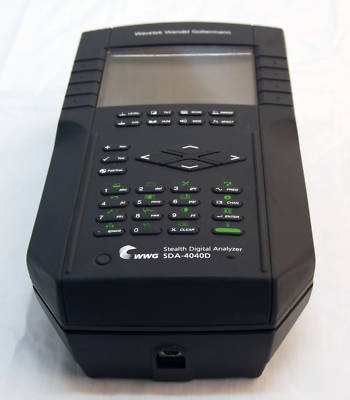

Wavetek jdsu acterna sda-4040D SDA4040D cable meter rf

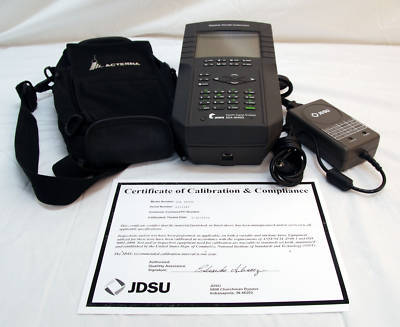

This listing is for a used Acterna / JDSU SDA-4040D meter in Excellent, working condition. It was recently removed from service and immediately calibrated and upgraded within the past month (Certificate will be included with the unit). It comes with an Extended Life battery pack and a wall charger (not photographed). This meter is ready to be put to use and comes with a full 30 day guarantee.
With today s varied networks, a solution that can handle cable modems, digital TV and maintain the analog spectrum is essential. Putting that solution into
a single, rugged instrument will enable technicians to use it in the most demanding of situations, whenever it is needed. The Acterna SDA-4040D Stealth Digital
Analyzer is just such a solution. Detecting and eliminating return path noise is accomplished with a fast spectrum analyzer (detects signals down to a 5 s duration), and the
industry-unique Acterna PathTrak Field View option. A zero span spectrum provides accurate, in-service power and carrier-to-noise measurements of cable modems.
The new QAM View digital analysis option adds forward path digital signal testing that includes constellation, pre/post FEC BER, MER, and an exclusive QAM ingress
feature that reveals noise under an active carrier. Of course, analog signal measurements are addressed with standard features like RF level, fast-scan, tilt, in-service C/N
and HUM, and FCC and CENELEC compliant autotesting. The Acterna SDA-4040D is an ideal solution for any network. Priced competitively to ensure that on-site
technicians are fully equipped with the equipment they need, the SDA-4040D will ensure rapid and accurate analysis of network turn-up or in-service testing
for fastest return on revenue.
Offers unmatched measurement performance in a single instrument
Enables easy preparation of networks for interactive services with a 5 to 1000-MHz fast, sensitive spectrum analyzer
Provides zero span measurement of power and carrier-to-noise ratios
Enables analysis and quality measurements of digital TVand cable modem signalswith optional QAM analysis
Ensures full in-service proof of performance with automated tests
Reduces testing and troubleshooting times for network analysis and qualification
Rugged, weather-resistant, and lightweight
Display 320 x 240 dot matrix LCD, selectable back light
Dimensions 6 x 11 x 3.5 in (15.2 x 27.9 x 8.9 cm)
Temperature range operating 4 to 117 F ( 20 to +47 C)
Power sources: Battery Extended-life replaceable nickel metal hydride, 12V/3.5A-hr 4 hours cont. use on a single charge
Frequency: Range 5 to 1,000 MHz Accuracy 10 ppm at 25 C; 10 ppm drift over temperature; 3 ppm/year aging
Resolution bandwidths 30, 280 kHz and 2MHz (30 kHz for CTB/CSO only)
Sweep resolution 250 kHz maximum
Level measurement: Range 40 to +60 dBmV
Accuracy 1.0 dB from 20 to +50 C(1,2)
Signal types CW, single carrier, video (single or dual audio/NICAM), audio, digital
Uncertainty for digital carrier additional 0.5 dB (digital types 16/32/64/256)
QAM, QPR, QPSK, VSB, CAP-16, DVB/ACTS and TDMA using Zero Span Spectrum mode) at 280 kHz RBW
Carrier-to-noise (4) In-service measurement. Non-scrambled channels only. No preselection required for 78 channels
or less. Best dynamic range at +10 dBmV or higher input.
In-service measurement. Carrier > 0 dBmV.
Assumes presence of white reference on any VITS
line. Non-scrambled channels only.
Audio demodulation of AM and FM carriers
Audio demodulation AM and FM carriers
Up to nine pilot carriers or video channels with tilt and level measurements on the highest and lowest.
All video, audio, pilot carrier, and digital channel levels displayed.
Display scale/range 6 vertical divisions 1, 2, 5, or 10 dB/division
Sweep pulse occupied bandwidth 30 kHz
Stability 0.5 dB, normalized (dependent on stability of referenced carriers)
Sweep rate ~1 second (78 Channels, including scrambled and digital signal types)
Channel plan templates (user editable)
China-1; China-2; France; HDTP-NL; Ireland; Japan; Jerold; Jerold-HRC; Jerold-IRC;
NCTA; NCTA-HRC; NCTA-SUB; NCTA-IRC; NTSC-Broadcast; OIRT-D/K; PL-B/G; PAL-UK
Spectrum mode: Spans 3, 5, 10, 20, and 50 MHz (0.3, 0.5, 1, 2, and 5 MHz/div.)
Sweep rates ~1 second updates with spans of 50, 20, 10 and 5 MHz ~1.7 second updates with 3 MHz span
Display scaling and range 0.5, 1, 2, 5, and 10 dB/div. 6 vertical divisions
Spurious free dynamic range 60 dB(3)
Sensitivity without preamp 40 dBmV 5 to 550 MHz 35 dBmV 550 to 1000 MHz
Sensitivity with preamp 50 dBmV 5 to 550 MHz 45 dBmV 550 to 1000 MHz
Max. level with preamp +50 dBmV
Video BW >1 MHz, 100 kHz, 10 kHz, 100 Hz
Resolution BW 2 MHz, 280 kHz, 30 kHz
Measurement BW Compensation programmable 1 kHz to 99 MHz
Pulse measurement accuracy nominal level in 10 s 2 dB from nominal in 5 s (> 1 MHz VBW, 280 kHz RBW)
Sweep times 100 s to 20 s (1, 2, 5 settings)
Intermodulation distortion (CSO/CTB)
Files types that can be stored: Sweepless Sweep, autotests, tilt graphs, channel plans, and scan
graphs. Spectrum graphs (normal, normal with max hold, and CSO/CTB) can also be stored. Memory
space is allocated on demand. All files stored as data, not as screen picture. Typical mix of files for 78-channel
plan, 8 channel plans; 16 sweep references, 80 sweep traces; 40 scan files, 20 spectrum displays; 20 autotests
Serial interface: RS232; Epson, IBM, Seiko, and Diconix printers
Connector type 75 Type F Female (Optional 75 Type BNC Female)
Maximum sustained voltage 100 VAC, 140 VDC
PathTrak field view (OPT 3 required)
Update rate 2x/second (remote trace) ~1x/second (local trace)
Display scaling 5/1/2/5/10/20dB/div.
Selectable nodes 14 (selectable via PathTrak HCU)
The QAM View option can be factory installed in any new or existing SDA Series instrument. The
specifications and features are in addition to the standard measurement features of the SDA Series.
When ordering, please specify OPT 4A for 8MHz, DVB-C, ITU-T J.83 Annex A, or OPT 4B for 6MHz,
DVS-031, ITU-T J.83 Annex B. Modulation type 64/256 QAM, DVB-C, ITU-T J.83 Annex A (OPT 4A)
64/256 QAM, DVS-031, ITU-T J.83 Annex B (OPT 4B)
8 MHz (OPT 4A); 6 MHz (OPT 4B)
Measurable input range (lock range)
64 QAM 20 to +50 dBmV (typical)
256 QAM 15 to +50 dBmV (typical)
50 to 860 MHz (Digital QAM mode) Resolution 50 kHz
64 QAM Pre-FEC/OPTs 4A and 4B 10 4 to 10 9
64 QAM Post-FEC/OPTs 4A and 4B 10 4 to 10 9
256 QAM Pre-FEC/OPT 4A and 4B 10 4 to 10 9
256 QAM Post-FEC/OPT 4A and 4B 10 4 to 10 9
64 QAM/Option 4A 22 to 35 dB Accuracy 2.0 dB (typical, see chart below)
64 QAM/Option 4B 21 to 35 dB Accuracy 1.5 dB
256 QAM/Option 4A 28 to 35 dB Accuracy 2.0 dB (typical, see chart below)
256 QAM/Option 4B 28 to 35 dB Accuracy 1.5 dB
EVM (error vector magnitude) 64 QAM/Option 4A 1.2% to 5.2% Accuracy 0.5% (1.2% to 2.0%)
1.0% (2.1% to 4.0%) 1.4% (4.1% to 5.2%)
64 QAM/Option 4B 1.2% to 5.8% Accuracy 0.5% (1.2% to 2.5%) 1.1% (2.6% to 5.8%)
256 QAM/Option 4A 1.1% to 2.5% Accuracy 0.6% 256 QAM/Option 4B 1.1% to 2.5% Accuracy 0.5%
Digital summary (including MER/EVM, Pre/Post FEC BER, Equalizer Stress, Carrier Offset, Symbol Rate) with limit/margin test results, QAM level.
Note: Option powered from SDA Series nickel metal hydride battery. Operating time is specified for continuous use in QAM View mode. Option includes
Operating time 2.5 hours continuous use (typical)
Input 100-250 VAC, 50-60 Hz, 0.5 A
Physical dimensions (total SDA-5000 size with OPT 4)
Weight Approx. 7.7 lb (3.5 kg)
Operating temperature range 4 to 113 F
