Radiation monitor meter 50 mhz to 3.5 ghz freq. range

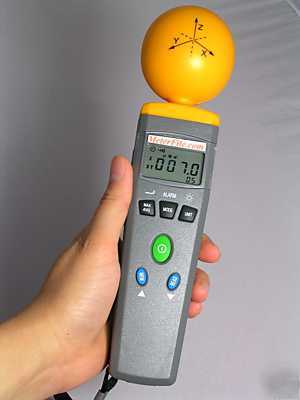

Radiation Monitor Meter 50 MHz to 3.5 GHz frequency range, Brand New
* 50 MHz to 3.5 GHz frequency range.
* For isotropic measurements of electromagnetic fields.
* Non-directional (isotropic ) measurement with three-channel measurement probe.
* High dynamic range due to three-channel digital results processing.
* Configurable alarm threshold and memory function.
* High frequency (RF) electromagnetic wave field strength measurement.
* Mobil phone base station antenna radiation power density measurement.
* Wireless communication applications (CW , TDMA , GSM , DECT).
* Wireless LAN (Wi-Fi) detection, installation.
* Spy camera, wireless bug finder.
* Cellular/Cordless phone radiation safety level.
* Microwave oven leakage detection.
* Personal living environment EMF safety.
* RF power measurement for transmitters.
Measurement range (CW signal>50MHz)
Absolute error(@1V/m and 50MHz)
Frequency response (taking into account typ. CAL factor)
+/- 1.0dB (50MHz to 1.9 GHz) , +/- 2.4dB(1.9GHz to 35GHz)
Temperature response(0 to 50 )
Unless otherwise stated, all specifications hold under the following assumptions:
Sinusoidal signals; device in far-field of a source; probe head pointing toward source; ambient temperature +23 deg. C +/-3 deg. C; relative air humidity 25% to 75%.
Digital , triaxial measurement
Typically 1s ( 0 to 90% of meas. value)
mV/m , V/m , uA/m , mA/m , uW/m2, mW/m2, uW/cm2
Instantaneous measured value, maximum value or average value since power-on.
Measurement average time (in per-set steps)
Adjustable threshold with ON/OFF
Measurement calibration factor CAL
Manual data memory and read storage
99 sets ( only recall by meter )
9V battery, carrying case & manual
