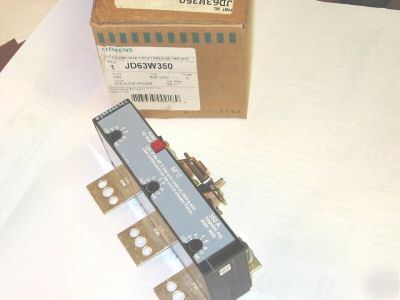

New siemens JD63W350 breaker trip unit 350A 3P 600VAC
SIEMENS / ITE JD63W350 3P 350A 600VAC LD, JD6, HJD6, HHJD6 FRAME; REMOVED FROM BOX FOR PICTURE
600 VAC AT 50/60 HZ, 500 VDC; 500 AMPERE AT 40 DEG C;
3 POLE 350 AMP ; INTERRUPTING RATING 65 KILOAMPERE AT 240 VAC, 35 KILOAMPERE AT 480 VAC,
25 KILOAMPERE AT 600 VAC/500 VDC (UL); 65 KILOAMPERE AT 220/240 VAC,
40 KILOAMPERE AT 380/415 VAC, 30 KILOAMPERE AT 500 VAC (IEC); NOT INCLUDED
TERMINAL; SIZE 7.5 INCH W X 5.44 INCH D X 11 INCH H; SENTRON[R] BRAND;
CALIBRATION AT 50 DEG C; ICS RATING 33 KILOAMPERE AT 220/240 VAC,
20 KILOAMPERE AT 380/415 VAC, 15 KILOAMPERE AT 500 VAC (IEC)
