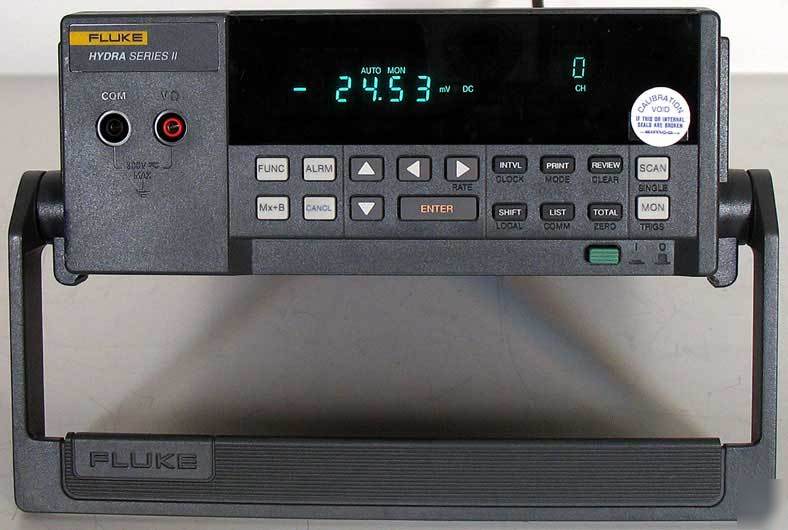

Fluke 2620A/05 hydra gpib/univ. module data acquisition
Fluke 2620A/05 GPIB! Hydra II Series Data Acquisition
w/Operating & Service Manuals on CD-ROM
*** Universal Input Module Included - Option 05 GPIB ***
The Fluke 2620A Hydra Data Acquisition Unit is ideal for applications that require direct connection to a PC for real-time data collection. An RS-232 serial interface makes it easy to connect the Hydra Data Acquisition Unit to a PC or modem for real-time data acquisition. The 2620 can also be used as a 20-channel panel meter.
The removable Universal Input Module enables fast, convenient set-up and reconfiguration. Any combination of dc voltage, ac voltage, thermocouple, RTD, resistance, or frequency measurements can be connected to the input module without the need for additional signal conditioning. Thermocouple reference junction compensation is automatically performed by sensing the temperature of the input module's isothermal block. For applications with multiple measurement locations, purchasing additional input modules provides the ability to quickly connect and disconnect a Hydra to these various sites while leaving all sensor wiring intact.
