10500GPD reverse osmosis drinking water system
This listing is for the AWS WS-4 10,500 GPD Reverse Osmosis Purification System
The AWS WS-4 is an Industrial grade Reverse Osmosis water purification system. It is currently used throughout the domestic and international marketplace, answering the call for pure, quality, consumable drinking water as well as any other purified water needs.

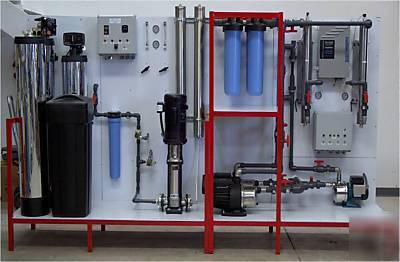

Skid Mounted Water Store Packages
Consists of two skids. Each 60 L x 30 W x 78 H Overall length 120 inches. Skid one has components for pretreatment and production of R.O. water as well as integrated electrical control panel, flow meters, Digital TDS monitor and gauges.
* 1.5 cu. ft. carbon filter w/ auto backwash Shown with
* Optional CD-10 AD Ozone system
* 20 inch BB 5 micron sediment pre-filter
* Stainless steel multi stage pump
* Filmtec thin film composite membrane(s)
* Stainless steel membrane housing(s)
* Stainless steel adjustable ball valves
* Product /waste / Recycle flow meters
* Stainless steel liquid filled pressure gauges
* Twin Grundfos 1.0 hp SS dispensing pumps
* Twin 15 gallon per minute UV lights
* Four big blue final filters two per dispenser line
* Twin dispensing pump allows for higher
* R.O. pump time delay flow rates and less down time
* Integrated R.O. Control with TDS monitor
* Low pressure pump protection
* Low tank level pump protection
Consists of two skids. Each 60 L x 30 W x 78 H Overall length 120 inches
Skid one has components for pretreatment and production of R.O. water as well as integrated electrical control panel, flow meters, Digital TDS monitor and gauges
Skid two has all equipment related to dispensing final filtration and disinfect ion of the final product water.
Skid two has two separate dispensing pumps, water lines, final filters that can work independently or together by opening the bypass valve .
Integrated pump control box with isolation switches for UV lights, both pumps, indicator lights low level pump protection and optional ozone pump controls.
Dispense pump bypass allows operation of single pump in the event one pump fails to operate or one needs repair.
AWS Permeate Rinse feature flushes R.O. membranes with pure water will in standby position. This helps prevent membrane fouling and eliminates the bad water R.O. membranes emit on
Water feed requirements 1 inch to 11/2 inch minimum 50 psi
Electrical requirement Two 20 amp single phase circuits 208 or 230 volts
Optional 3 phase version requires One 30 Amp three phase 240 / 480 volts
Manufactured by: Advanced Water Systems 25438 N. 17th Ave. Phoenix, AZ 85085
