Lexmark 2490-100 dot matrix impact forms printer 2400
Lexmark 2490-100 Dot Matrix Impact Forms Printer 2400
Lexmark Forms Printer 2490: The forms printer that delivers excellent print quality to multipart forms and business documents.
Reliable printers designed for quiet, high-speed forms printing
* Easy to use 2-layer operator panel.
* Automatic switch between Parallel, USB and optional Serial.
* Optional Automatic Sheet Feeder automatically feeds cut sheets.
* Can be used in conjunction with continuous forms and manually fed cut sheets, envelopes or multi-part forms.
* Allows up to four unique form settings through the printer menu.
* Optional Tractor 2 attaches to the front of the printer and provides the capability to load two different types of forms in the printer simultaneously.
* Part Number 2490: Narrow Carriage (p/n 12T0350)
* Technology 24-pin dot matrix
* Maximum Print Line 2490: 8" (203 mm)
465 cps in Fast Draft at 12 cpi
409 cps in Fast Draft at 10 cpi
91 cps in Near Letter Quality (NLQ) at 10 cpi
Resolution 360 x 360 dots per inch
Receive Buffer (max.) 79.5KB standard
IBM PPDS emulation with euro support
Text Fonts Gothic, Courier, Prestige, Presentor, Orator, Draft, Fast Draft, Script
19.4" (491.5 mm) (W), 11.4" (290 mm) 7.7" (195 mm) (H), 17.6 lb. (8 kg)
Code 39, Code 128, EAN 8, EAN 13,
Interleaved 2 of 5, UPC-A, POSTNET
* Continuous forms may be loaded in push or pull mode with the movable tractor
* Convenient manual feed tray that can be used for cut sheets, multi-part cut sheets, envelopes or post cards
* Tractor 2 option allows simultaneous loading of two continuous forms with selection at the touch of a button
* With the Automatic Sheet Feeder you can automatically feed cut sheets in conjunction with continuous forms and manually fed cut sheets, envelopes or multipart forms
* Up to 4-part forms in variable lengths 3" (76 mm) to 22" (559 mm)
* Continuous forms, cut sheets, labels, and envelopes and envelope
* Four-panel selectable forms macros; automatic
* Printhead Life: 300 million strokes per wire
* Standard re-inking ribbon 4 million characters
* in Draft at 10 characters per inch (cpi)
* Optional high-yield re-inking ribbon 8 million
* characters in Draft at 10 cpi
Standard re-inking ribbon (p/n 11A3540)
High-yield re-inking ribbon (p/n 11A3550)
12,500 hours mean-time-between-failure (MTBF) at 25% duty cycle
* 120 Volts AC 1-Phase (60Hz)
* Parallel interface with standard centronics protocol
* Optional internal RS-232 serial interface
* Coax Adapter for SCS (p/n 12T0156)
* Twinax Adapter for SCS (p/n 12T0157)
* MarkNet X2000 series external Ethernet and Token-Ring print servers
* Tractor 2 Feeder: p/n 12T0152
* Automatic Sheet Feeder: p/n 12T0150
* 2400 Series Serial Interface: p/n 12T0154
* Serial Cable: p/n 1038693 (50 ft)
* Parallel Cable: p/n 1329605 (10 ft); p/n1427498 (20 ft)

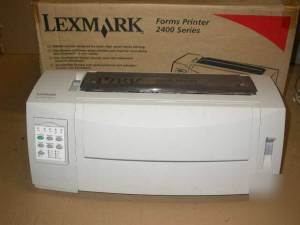

Item is in good physical conditon in the lexmark box.
Item powers up and prints a good test page(see pictures)
