De sta co model 462 squeeze action plier clamp 1 pc

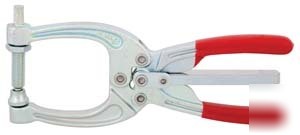

Da Sta Co. SERIES 462 Squeeze Action Plier Clamp *New*
Ideal for all areas which work is performed with holding capacities of up to 700 lbs.
Furnished with M10 swivel-foot adjustment spindle (TC-468206-M) and two-way trigger release. Forged alloy steel components, clevis type construction with stainless steel rivets.
Clamp Type: Squeeze Action Plier
Manufacturer's Part Number: 462
Holding Capacity (Pounds): 700
Supplied With: Swivel Pad Spindle with Nut
Overall Length (Decimal Inch): 8.5000"
Handle Height (Decimal Inch): 2.69
Thickness (Decimal Inch): 0.69
Throat Depth (Decimal Inch): 2.7200"
Throat Height Closed (Decimal Inch): 1.7500"
Throat Height Open (Decimal Inch): 4.1000"
