Commscope fxl dmdm-25 ft, 1/2" coaxial jumper assembly

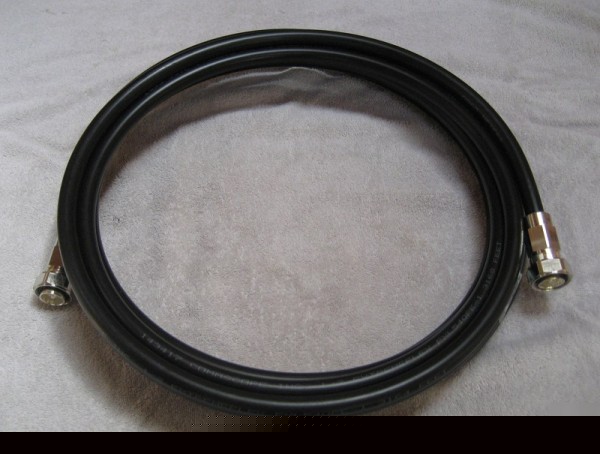

CommScope FXL DMDM-25 ft, 1/2" Coaxial Jumper Assembly
* Connector A, B - 7/16 DIN(M), 7/16 DIN(M)
* RL Peak Values (dB) - 800 - 2500
* Insertion Loss (dB) - 850 - 1900
FXL 540 Cable - Electronic technical specifications & Parameters
* Standard PE jacket - FXL 540 PE
* Cutoff Frequency, Ghz - 8.8
* Peak Power Rating, kW - 41.8
* DC Resistance, Ohms/1000 ft (1000m) -Inner 0.42 (1.38), Outer 0.63 (2.07)
* DC Breakdown, Volts - 2500
* Jacket Spark, Volts RMS - 5000
* Capacitance, pFd/ft(m) - 23.1 (75.8)
* Inductance, H/ft(m) - 0.058 (.190)
* 800-2500 MHz - 1.10:1 (26.4)
* DTF Specification (at minimum bend radius)
* 800-2500 MHz - 1.006 (50.0)
* Outer Conductor - Aluminum
* Inner Conductor - Copper-Clad Al.
* Inner Conductor Dia., in. (mm) - .201 (5.11)
* Dia. Over Outer Conductor, in. (mm) - .540 (13.7)
* Dia. Over Outer Jacket, in. (mm) - .610 (15.5)
* Minimum Bend Radius, in. (mm) - 2.0 (51)
* Bending Moment. ft-lbs. (Nm) - 6.5 (8.78)
* Cable Weight, lbs/ft (kg/m) - 0.117 (0.17)
* Tensile Strength, lbs. (Kg) - 400 (182)
* Flat Plate Crush Strength, lbs./in. (kg/mm) - 90 (1.7)
* Insertion Loss, dB-Formula Straight .05 F, GHz Right Angle.1 F, GHz
* Intermodulation-3rd Order Product-dBm (dBc) - >115 (158) (Two +43 dBm carriers, IMproduct between 1870-1910 MHz)
* Maximum length in/(mm) - 2.50 / (63.5)
* Maximum Diameter in/(mm) 1.05 / (26.8)
* These premium connectors for 1/2" Cell Reach & Extremeflex cable are designed to provide the lowest VSWR and intermodulation levels in the industry
* A unique coring tool is used during installation, greatly reducing connectorization time and ensuring optimum electrical contact
* Other features include superior retention force, tarnish resistance, and waterproofing
Brass is used as the connector body base material. Surfaces in the RF transmission path are silver plated. All other surfaces are nickel/tin coated. Insulators are made of polypropylene, polytetraflourethylene (PTFE), polycarbonate and Delrin. All O-rings are made of ethylene propylene rubber (EPDM) to ensure the tightest seal against moisture ingress.
* Telecom applications from 900Mhz up to 6 Ghz
With more than 30 years experience as a world leader in coaxial cable innovations, CommScope Wireless offers advanced cable technologies for the wireless industry. CommScope Wireless has high speed, high bandwidth coaxial, fiber optic, twisted pair and composite cables for wireless applications including mobile, WiFi and in-building wireless networks. We have the cable technology that helps you achieve your goal-create a wireless network, which provides reliable access anytime, anywhere-at home, the office and remote environments.
CommScope, a world leader in the manufacture of broadband and high-performance communication cables, offers a low loss, low cost 50 Ohm Wireless Broadband Communication (WBCTM) cable designed with maximum flexibility for demanding installation sites where curves,bends and twists rule out the use of standard hardline transmission cables. FXL cable is designed for Land Mobile Radio, LMDS, MMDS, Paging, WLL, mobile, in-building and fixed wireless broadband two-way communications networks. With the continuing growth in the in-building and broadband wireless markets, FXL cable is the clear cable-of-choice for challenging installations requiring a tight bend radius. WBC is well-suited for antenna feeds over short distances, wireless jumper assemblies, replacement of aging andless effective systems, or complex installations where flexibility is required. FXL cable is engineered to achieve low loss characteristics using CommScope s patented closed micro-cell foam dielectric and proven braiding technology. With the expansion of the FXL product line, CommScope continues to offer the widest array of cable products to meet the most stringent high performance cable requirements. CommScope is a leading, superior quality manufacturer of twisted pair, digital broadband, fiber optic cables. CommScope is ISO-9001 certified and CommScope Wireless is TL-9000 certified.
Seller "Warranties Property and Condition is as Described"
