Pwm 300 180° machine torch package-25' lead set,2-2846
Plasma Arc Welding Torch Package
Thermal Dynamics PWM 300 Plasma Arc Welding Torch

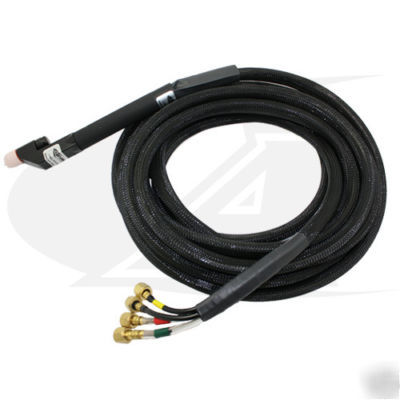

PWM 300 180 "In-Line" Machine Torch Package with 25' (7.6m) Lead
Set with Fittings, Mounting Barrel and Rack Assembly Installed. PWM 300
Performance Proven Replacement for Thermal Dynamics PWM 300
Thermal Dynamics part number: 2-2846.
PWM 300 Plasma Torch Specifications:
-180 Thermal Dynamics PWM 300 Plasma Torch Body-
* 180 Degree (Part No. 8-6649) Water Cooled Torch Body
* Current Rating 300 Amps (DCSP)
* Coolant Requirements 20,000 BTU/hr (3025 kcal/hr) 2 gpm @50 psi (15.2 ipm @ 3.7 kg/cm2)
* Torch Body Length 22 3/16" (.56m)
* Head Diameter 2 1/2" (64mm)
* Head Height 1 -11/16" (43mm)
* Gear Rack Adjustment 12-7/16" (316mm) Minimum to 20-3/16" (.51m) Maximum
Torch Package compatible with Thermal Dynamics PWM 300 Plasma Arc Welding Torch Packages and Ultima 150 Plasma Arc Welding Systems.
PWH 300 Plasma Torch Exploded Parts View
